Why Do My LED Bulbs Look Like a Patchwork of Different Colors?

You installed beautiful new LED filament bulbs, but your design is ruined. The lights are a mix of yellowish, pinkish, and stark whites, looking cheap and unprofessional and destroying the project's ambiance.

Color inconsistency comes from microscopic variations in the LED chips and phosphor coatings during manufacturing. Sourcing from a supplier who uses a strict "binning" process to sort every LED by precise color is essential for guaranteeing visual uniformity in your projects.

I once got a call from Jacky, a key product manager in the US, and he was in panic mode. He had just supplied our A19 filament bulbs for a major renovation of a historic five-star hotel. The lighting designer had specified a very specific warm, inviting 2700K glow to run down the main guest corridors, with hundreds of bulbs in view at once. But the contractor he used to source a small portion of the bulbs for a side hallway had supplied a cheaper alternative. The result was a disaster. The main hallways looked perfect, but that one corridor looked like a "checkerboard of light," as Jacky put it. Some bulbs were yellow, some were almost pink, and some had a sickly greenish tint. The hotel's general manager was threatening to reject the entire installation. Jacky’s reputation was on the line, and it was all because a different supplier didn't understand that for professionals, "close enough" is never good enough when it comes to color.

What's Causing This Color Variation in the First Place?

You specified "2700K Warm White" for an entire batch of bulbs. Yet, when installed, they look completely different from each other, causing client complaints and making you look unreliable.

The variation is caused by tiny, unavoidable differences in the LED chips themselves and the phosphor coating that converts blue light to white. Without strict process control during manufacturing, these differences create noticeable color shifts between bulbs.

To solve a problem, you have to understand its source. The color variation you see in a finished project doesn't start at the assembly line; it starts at a near-atomic level during the creation of the LED itself. Every "white" LED light in the world is actually a marvel of material science, but this complex process is inherently variable. As a manufacturer, our entire quality control system is built around managing these microscopic variables so that the final product you install is perfectly consistent.

The Foundation: The Blue LED Chip

It might surprise you to learn that white LED filament bulbs do not start with a white light source. The engine inside every single one is a tiny semiconductor that produces a very intense, pure blue light. This is called the LED die¹. The process of growing these semiconductor crystals is incredibly complex. Even in the most advanced, multi-million dollar manufacturing facilities, it's impossible to make every single chip produce the exact same wavelength and intensity of blue light. There will always be tiny, fractional variations from one chip to the next on the same production wafer. One might be a slightly deeper blue, another a tiny bit closer to cyan.

The Magic Ingredient: The Phosphor Coating

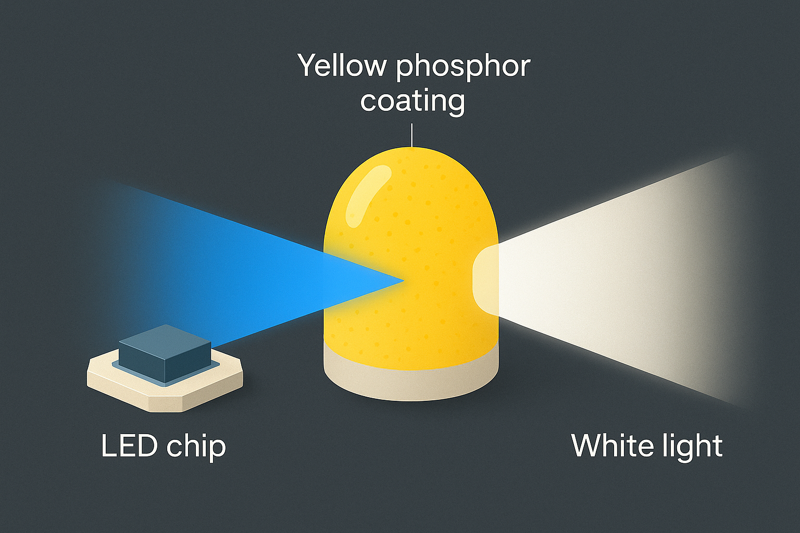

This is where the real transformation happens. To create "white" light, the blue LED chip² is coated with a precise layer of a chemical compound called a phosphor. When the intense blue light from the chip strikes this phosphor, the phosphor glows, emitting a broad spectrum of yellow light. The human eye perceives the combination of the original blue light that passes through and the new yellow light from the phosphor as "white." The exact shade of white—from a warm, candle-like 2200K to a cool, stark 6500K—is determined entirely by the chemical makeup and the physical thickness of this phosphor coating³. A slightly thicker or denser phosphor layer will convert more blue light, resulting in a warmer, more yellowish final color. A thinner layer will let more blue light through, resulting in a cooler, bluer-white color.

The Manufacturing Reality

Now, combine these two variables. You might have a blue chip that is naturally a little "greener" than average, and it gets a phosphor coating that is a few microns thinner than average. The resulting light will be noticeably different from a chip that was a little "purer blue" and got a slightly thicker coating. Even if the factory was aiming for 2700K on both, one might end up at 2650K with a greenish tint, and the other at 2750K with a pinkish tint. This is the root cause of color inconsistency⁴. It’s an unavoidable outcome of the physics of LED production. A cheap manufacturer just puts all these varied LEDs into bulbs and ships them. A quality manufacturer begins the critical process of sorting.

How Does CCT and 'Binning' Affect My Project's Look?

You struggle to explain to your clients why the lights don't match. You need a technical, reliable way to ensure every single bulb in an order looks exactly the same, every time.

"Binning" is the crucial quality control step where every LED is tested and sorted into tight groups ("bins") of identical color. Insisting on a supplier who uses a narrow binning process, like a 3-step MacAdam ellipse, is the only way to guarantee uniformity.

When Jacky and I diagnosed the problem at the hotel, the technical reason was clear: the cheap bulbs used "5-step" or even "7-step" binned LEDs, while our Hongyu bulbs used a strict "3-step" bin. This terminology might sound complex, but for a professional buyer, it is the single most important specification to understand for ensuring color quality. It's the language of consistency.

Understanding CCT and Duv

First, let's clarify what "color" means. Correlated Color Temperature (CCT)[^5] is the number you already know, like 2700K or 4000K. It describes where the light falls on the spectrum from yellowish to bluish-white. However, there's a second, equally important metric: Duv⁵. This measures the tiny shift of the light color above or below the ideal "pure white" line (known as the black body locus). A positive Duv means the light has a slight greenish tint. A negative Duv means it has a slight pinkish or rosy tint. Two bulbs can both be exactly 2700K CCT, but if one has a high positive Duv and the other has a high negative Duv, they will look noticeably different when placed side-by-side.

The Solution: MacAdam Ellipses and SDCM

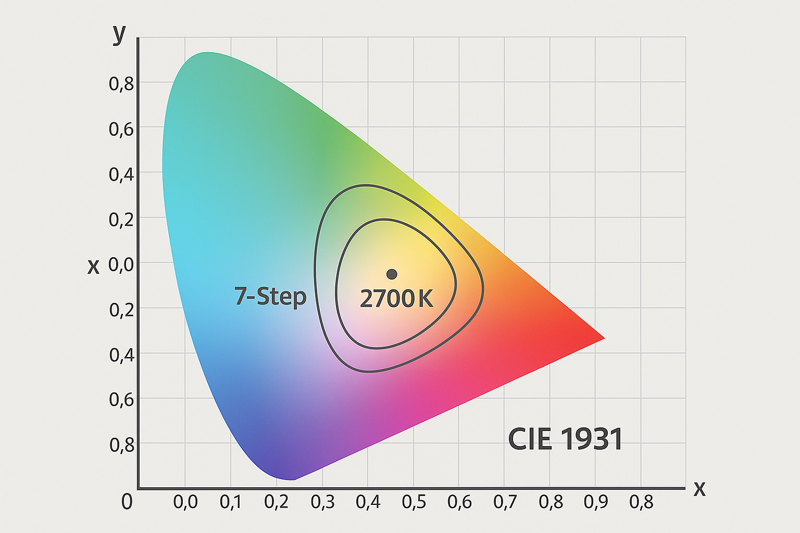

In the 1940s, a scientist named David MacAdam conducted experiments to determine the limits of human perception of color. He found that the range of colors that are visually indistinguishable from a target color can be mapped as an ellipse on the color chart. This is the "MacAdam ellipse⁶."

• 1-Step Ellipse: Contains colors that are imperceptible from each other to the human eye. This is the highest standard.
• 3-Step Ellipse: A wider range, but still represents a very high level of color consistency that is considered excellent for professional architectural lighting.
• 5-Step & 7-Step Ellipses: The color differences within these larger ellipses are clearly visible to a casual observer. This is typical for cheap, consumer-grade products.

The technical term for this is SDCM (Standard Deviation of Color Matching)⁷. A "3-step MacAdam ellipse" is the same as "3 SDCM⁸".

Why Binning⁹ is Non-Negotiable for Professionals

"Binning" is the physical process of applying this science. At our factory, every single LED filament that comes off the production line is placed in a machine that measures its exact CCT and Duv. The machine then automatically sorts, or "bins," it with others that fall within the same tiny elliptical area on the color map. At Hongyu Bulb, our standard for professional projects is a strict 3 SDCM bin. This means that any two bulbs you receive from us will be visually indistinguishable from each other. Cheaper manufacturers use wider bins because they can sell more of their production output, but this comes at the direct cost of your project's quality.

For Jacky, understanding this allowed him to go back to the hotel manager not with excuses, but with a scientific explanation and a clear solution. He could prove that the problem was a definable, measurable quality metric that the cheap supplier had failed to meet.

Why Do My Bulbs Change Color Over Time?

You installed a perfect set of matching bulbs. But a year later, some have turned dim and yellow, while others have shifted to a cooler, bluish hue, ruining the consistency you worked so hard to achieve.

This color shift is caused by the degradation of low-quality materials—specifically the phosphor and the silicone binder—due to excessive heat. A bulb with superior heat management and high-quality materials will maintain its original color for years.

This is the hidden, long-term cost of buying cheap bulbs. Achieving perfect color on day one is only half the battle. A professional installation needs to look just as good in year three as it did at the grand opening. When clients call about bulbs changing color over their lifespan, it's almost always a failure of thermal management and material science. Heat is the ultimate enemy of an LED.

The Role of Heat in Color Degradation

An LED filament, despite being highly efficient, still generates a significant amount of heat in a very small area. This heat must be wicked away effectively. If it is not, it begins to "cook" the very components that create the light.

• Phosphor Degradation: The chemical phosphor that converts blue light to yellow is sensitive to high temperatures. Over time, excessive heat can cause the phosphor to lose its conversion efficiency. As the phosphor degrades, it converts less blue light into yellow light. This means more of the original blue light from the chip passes through, causing the bulb's color to shift towards the cool, blue end of the spectrum.
• Silicone Binder Yellowing: The phosphor crystals are typically suspended in a clear silicone binder that is applied to the LED chip. In a low-quality bulb, this silicone is not rated for high temperatures. Over thousands of hours of operation, the heat causes the silicone itself to turn yellow or brown. This acts like a yellow filter, making the light output appear much warmer and dimmer than its original specification.

You can end up with both problems on the same installation. Bulbs from one cheap batch might have poor phosphor, shifting blue. Bulbs from another batch might have poor silicone, shifting yellow. The result is a chaotic, inconsistent look that makes the entire project feel old and poorly maintained.

The Hongyu Bulb Approach to Long-Term Stability

We build our bulbs for longevity because we know our clients' reputations depend on it. We combat color shift by focusing intensely on thermal management and material quality.

• High-Purity Inert Gas Fill: Unlike cheap bulbs that just have air or low-grade nitrogen inside the glass envelope, we use a proprietary, high-purity inert gas mixture (often helium or a helium blend). This gas is a far better thermal conductor than air. It actively draws heat away from the delicate LED filaments and transfers it to the outer glass shell, where it can safely dissipate. This keeps the core temperature of the phosphor and silicone much lower.
• Premium, High-Temperature Binders: We work with our suppliers to use only high-stability silicone binders that are specifically engineered to resist thermal yellowing. They cost more, but they are rated to withstand the operational temperatures of the LED for its entire 15,000-hour rated life without discoloration.
• Rigorous Long-Term Testing: We don't just test our bulbs when they come off the line. We subject batches to accelerated life testing, running them at high temperatures for thousands of hours in our lab's "heat box." We then use a spectrophotometer to precisely measure any color shift. This data ensures that the components we use meet our strict standards for long-term color stability.

By investing in these unseen details, we ensure that a Hongyu Bulb will maintain its specified color point not just for a few months, but for many years of commercial use.

Conclusion

Guaranteed color consistency is not an accident; it's a result of a supplier's commitment to strict manufacturing controls, tight LED binning, and superior materials science for long-term stability and performance.
