G4 G9 & Spotlight Lamps
G4 capsule · G9 capsule · MR11 · MR16 · GU10 — COB and SMD options, 3000K–4000K, beam 24°–60°
Product Gallery
G-Series · 1.1W Base

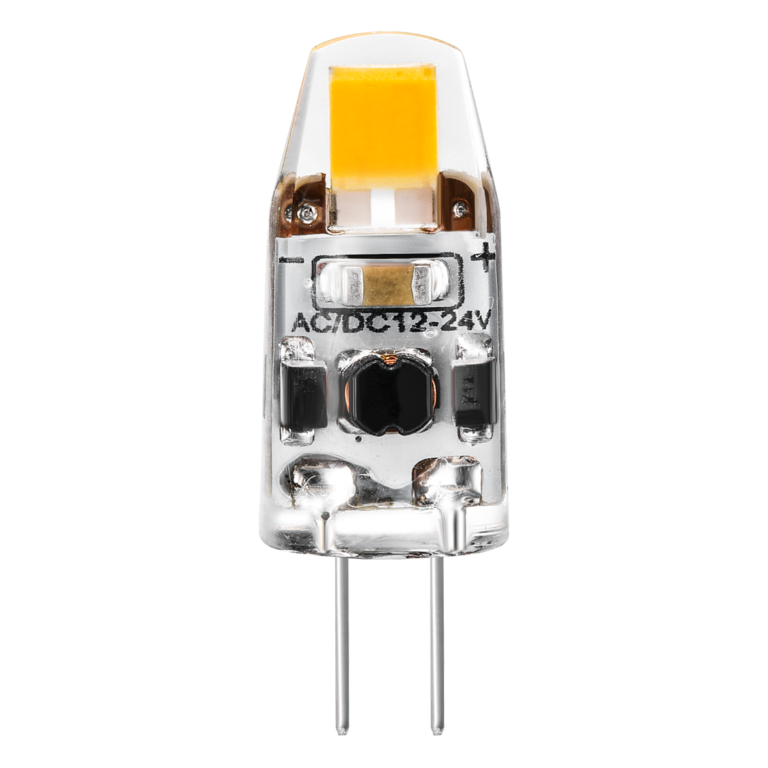

G4 / 1.1W / 1.1W
Clear
G-Series · 1.5W Base
G4 / 1.5W / 1.5W
Clear

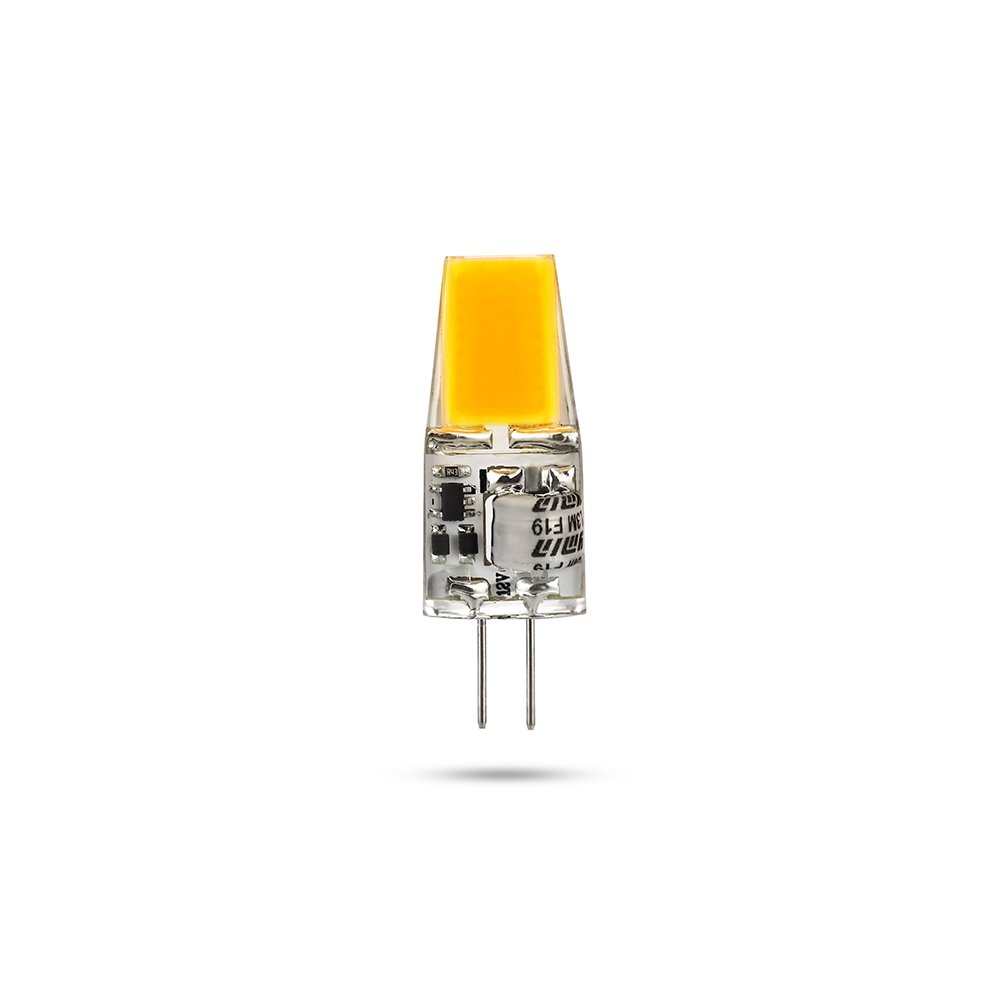

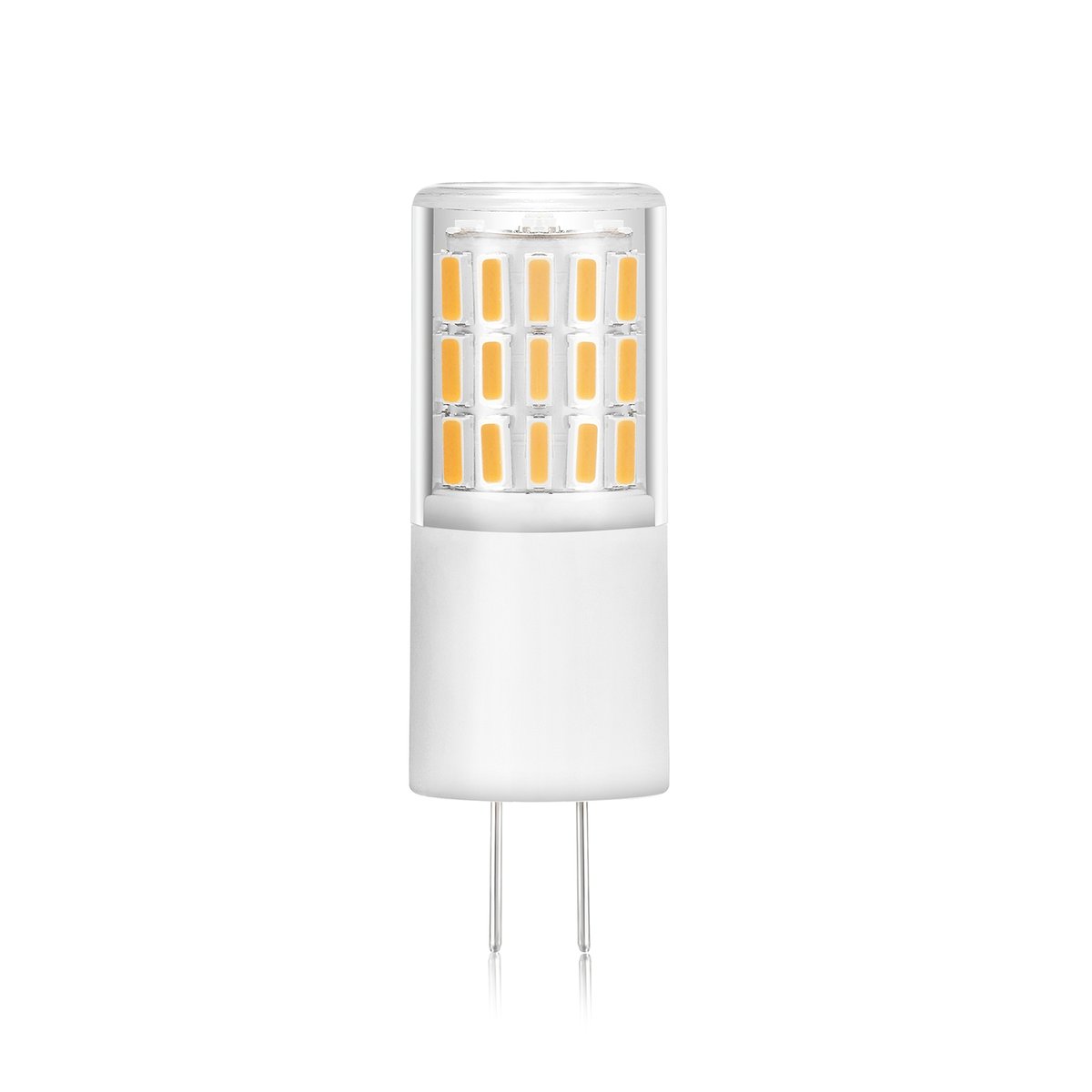

G-Series · 2.0W Base

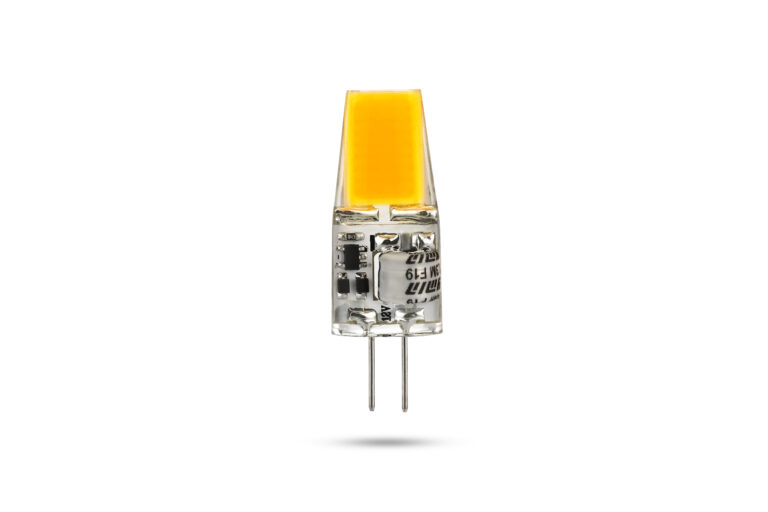

G4 / 2.0W / 2.0W
Clear
G4 / 2.0W / 2.0W
Clear
G4 / 2.0W / 2.0W
Clear

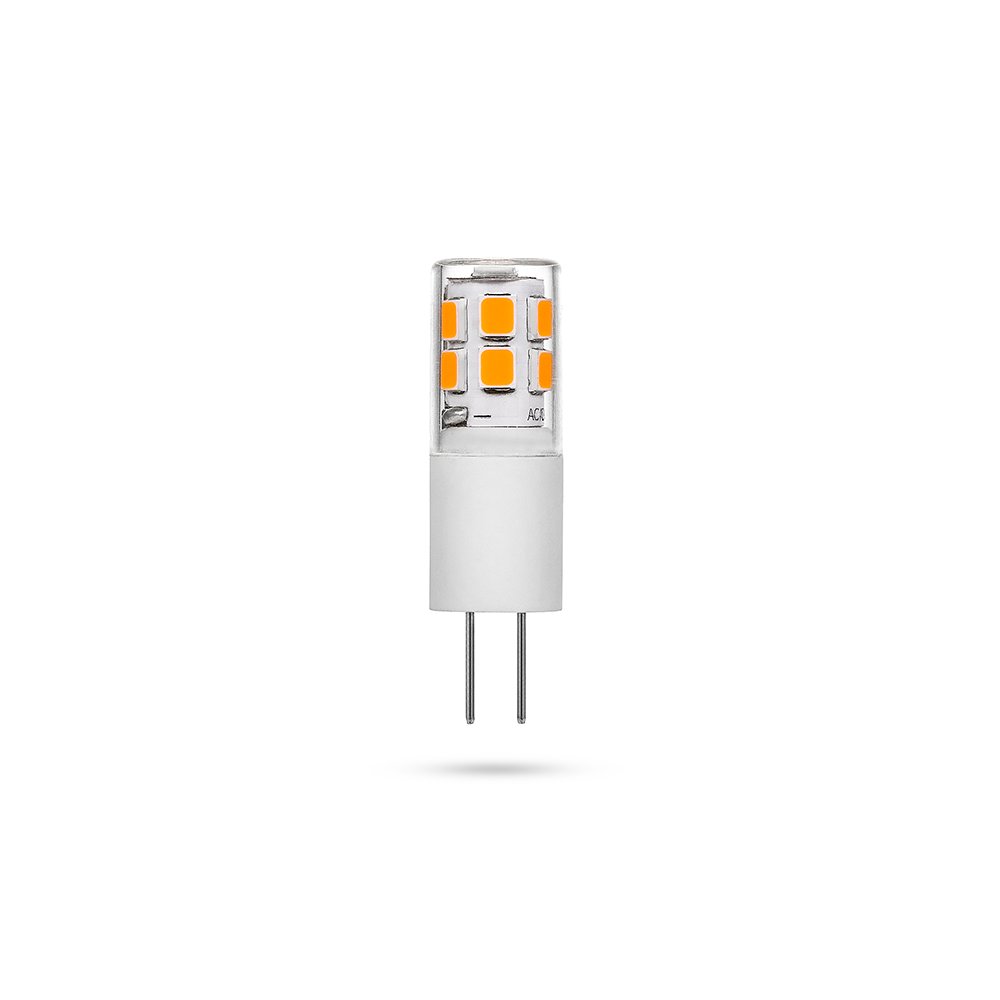

G-Series · 1.8W Base

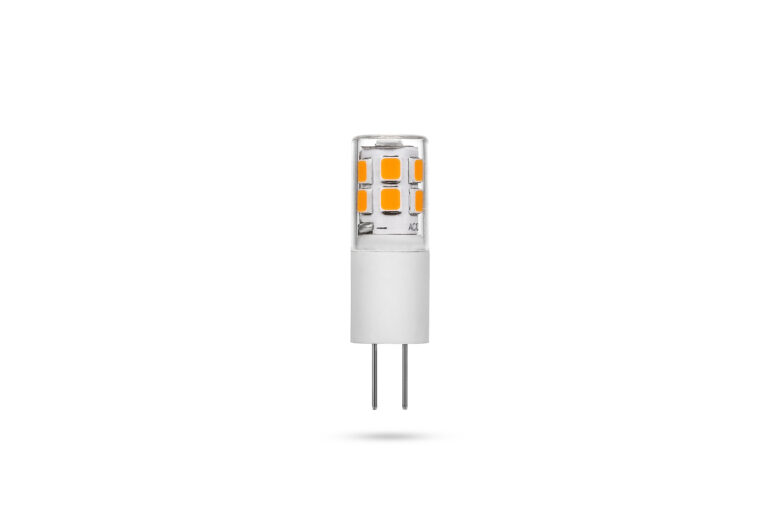

G4 / 1.8W / 1.8W
Clear

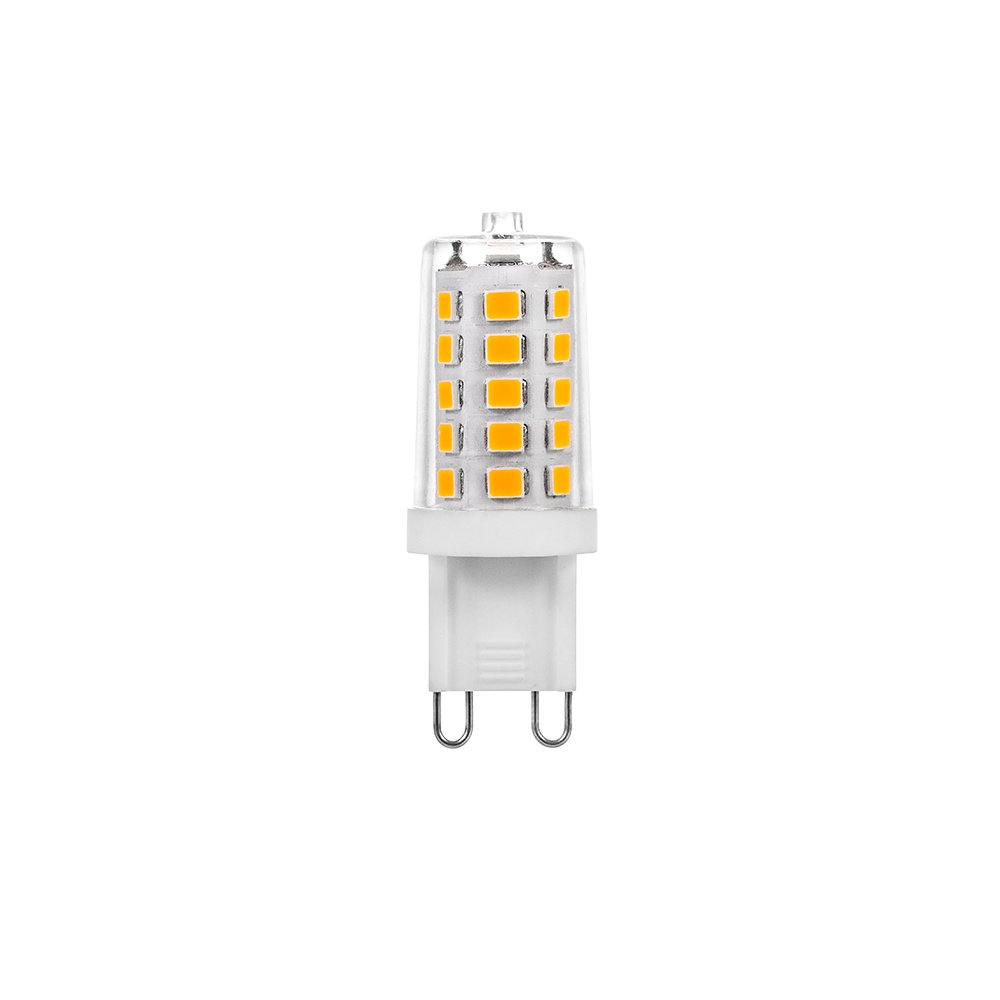

G-Series · 3.0W Base

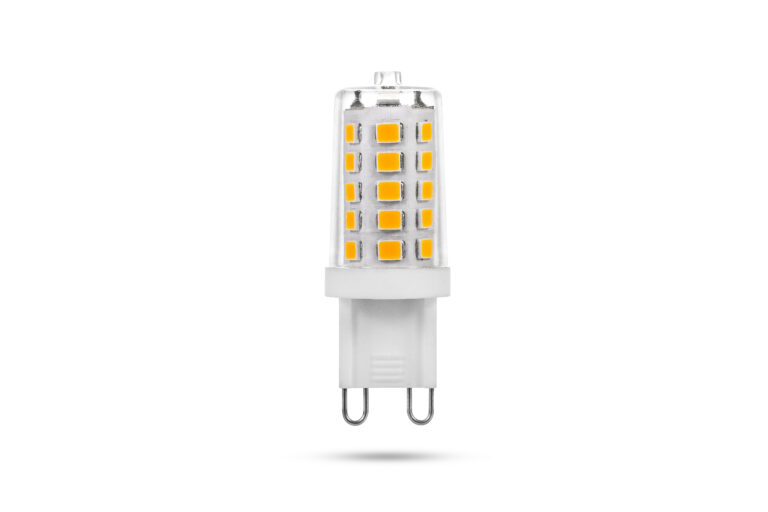

G9 / 3.0W / 3.0W
Clear
G9 / 3.0W / 3.0W
Clear
G-Series · 4.5W Base

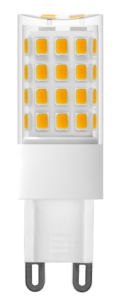

G9 / 4.5W / 4.5W
Clear

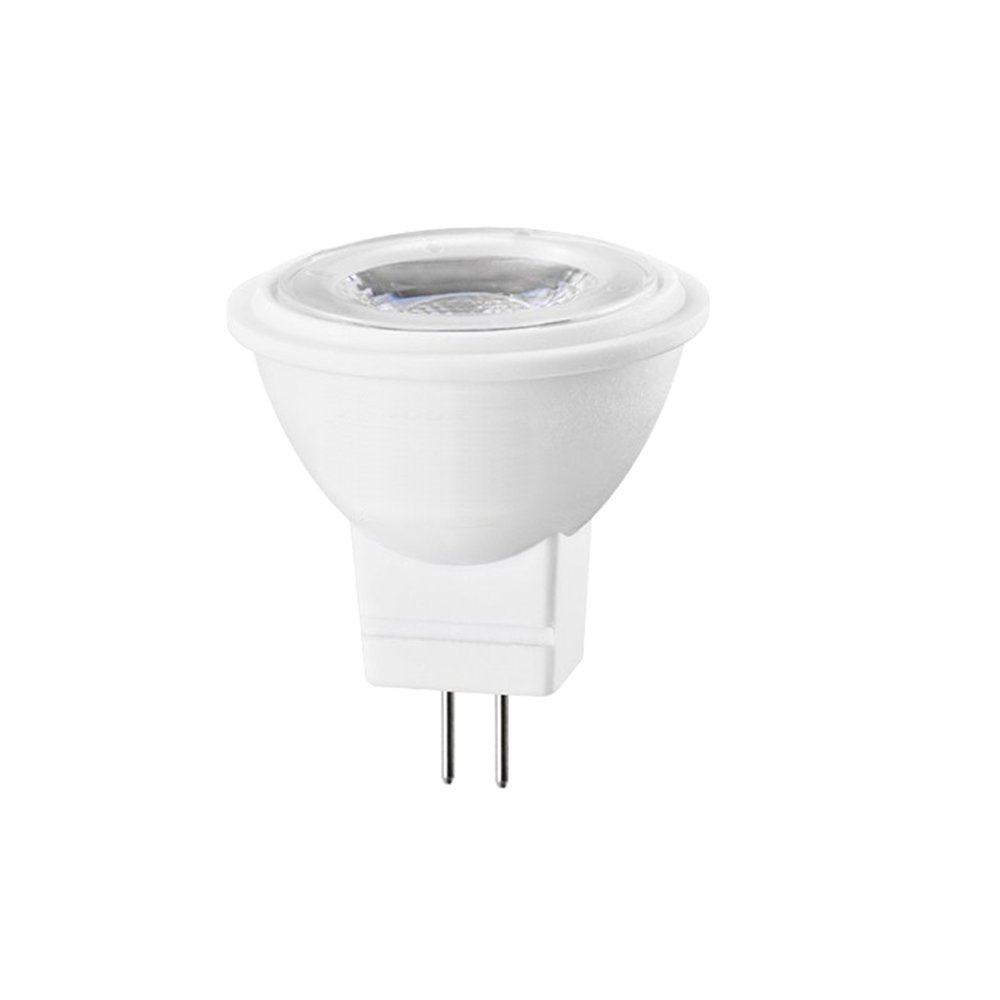

MR-Series · 2.0W Base

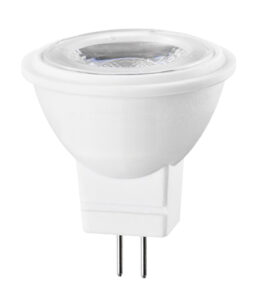

MR11 / 2.0W / 2.0W
Clear

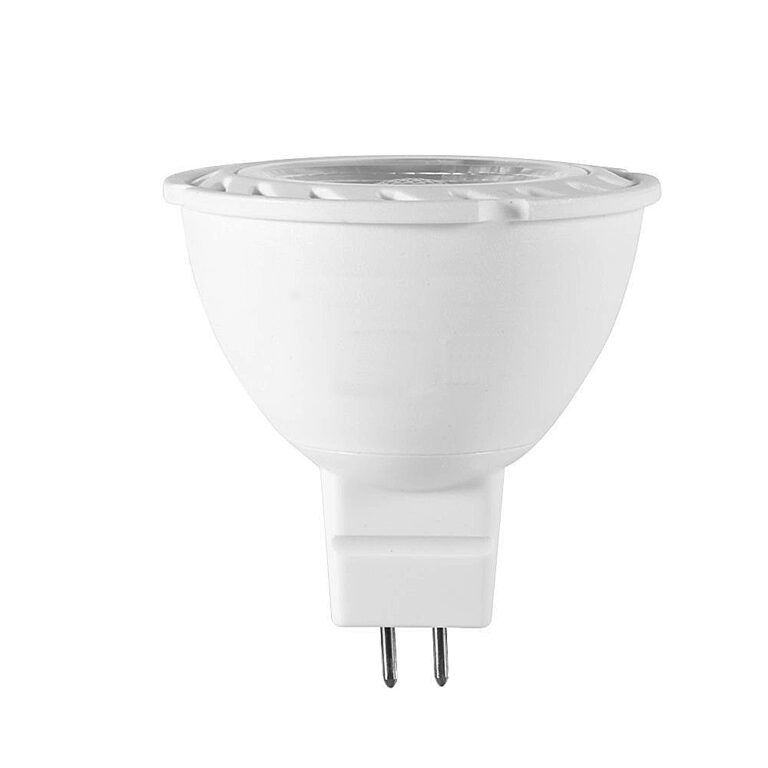

MR-Series · 5.0W Base
MR16 / 5.0W / 5.0W
Clear
MR-Series · 7.0W Base
MR16 / 7.0W / 7.0W
Clear
GU-Series · 2.5W Base

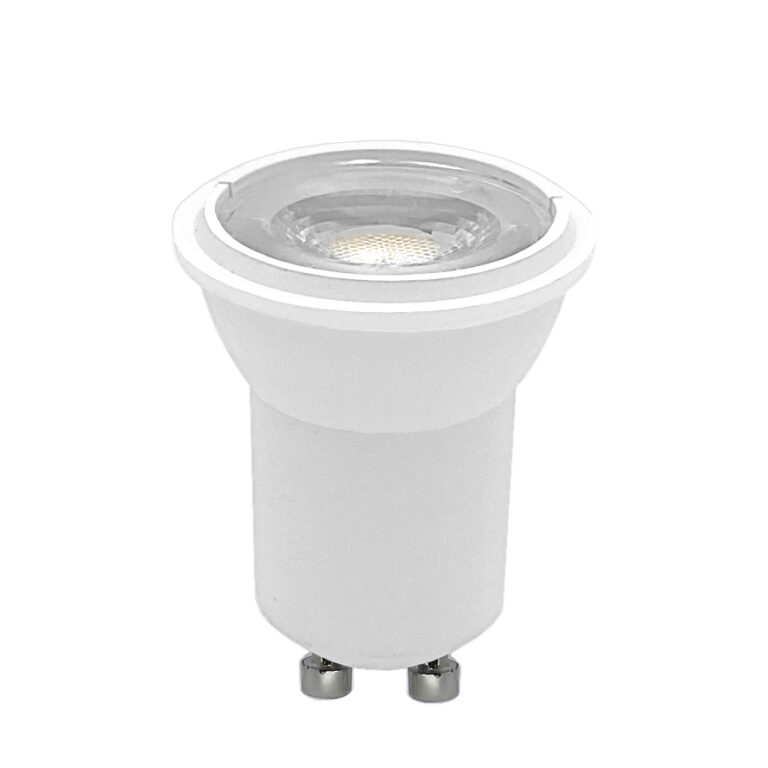

GU10 / 2.5W / 2.5W
Clear

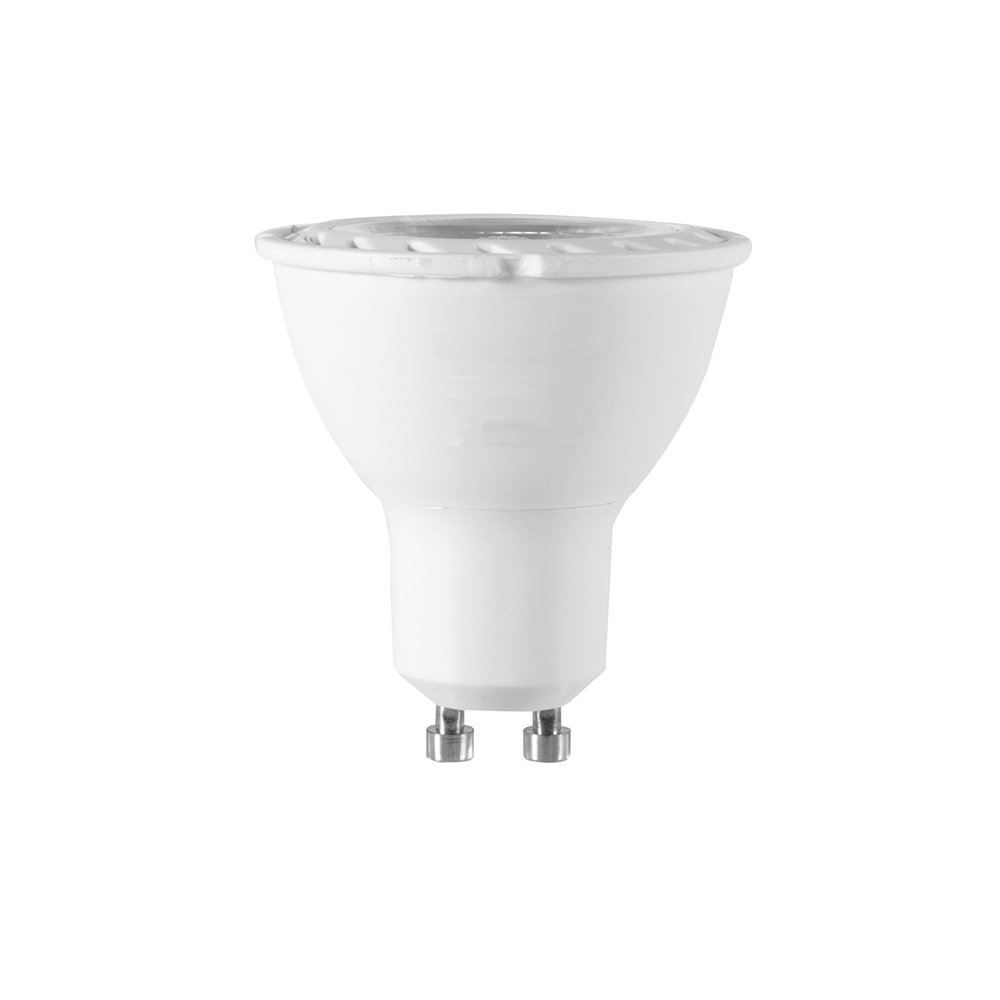

GU-Series · 5.0W Base

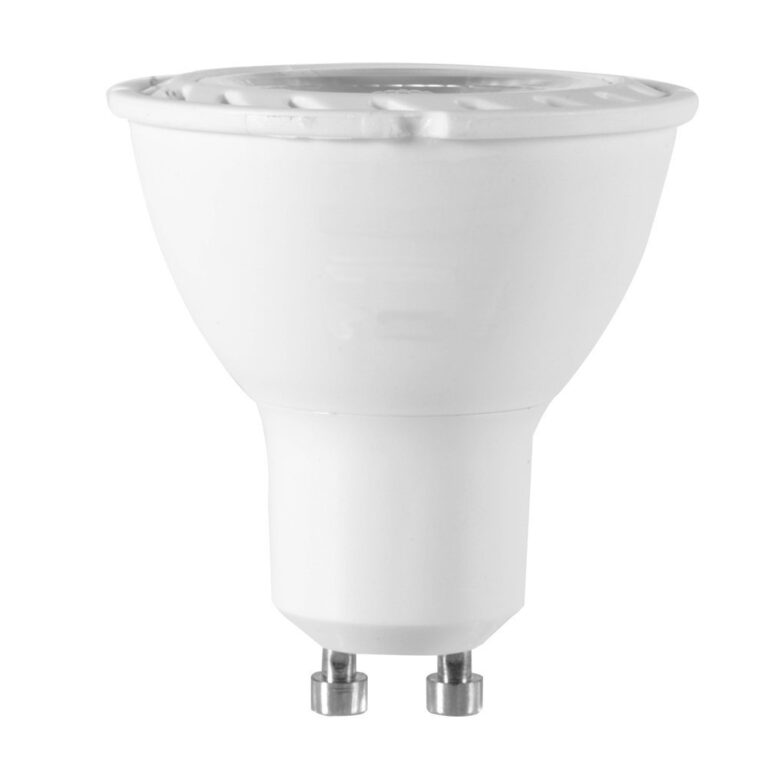

GU10 / 5.0W / 5.0W
Clear

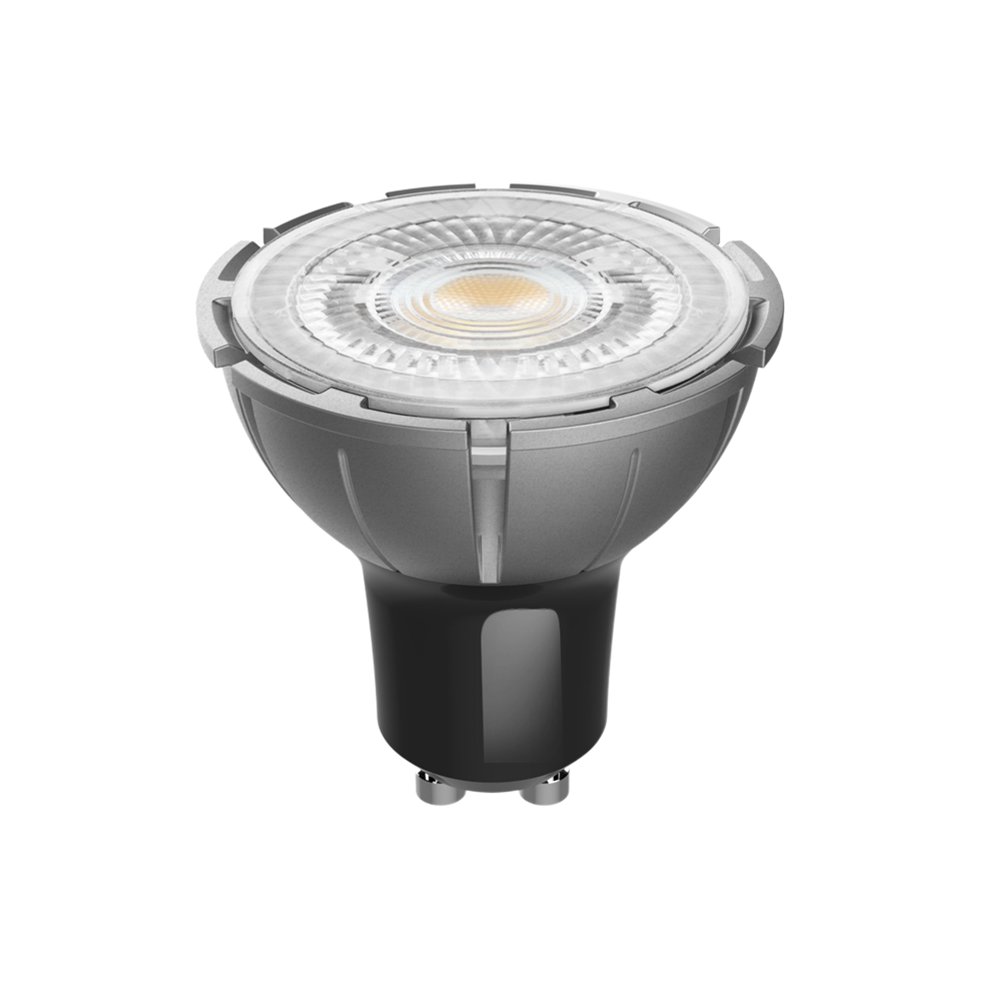

GU-Series · 7.0W Base
GU10 / 7.0W / 7.0W
Clear
Overview
HongYu's G4, G9, and spotlight range covers the small-lamp applications that filament bulbs cannot: display-case G4 capsules (12V), mains-voltage G9 loops, and MR11/MR16/GU10 spotlight replacements. COB chip designs eliminate the visible hotspot common in SMD clusters. CE and ETL listed, 1.1W to 5W, 3000K to 4000K, beam angles from 24° (narrow spot) to 60° (wide flood). Ra 80 and Ra 90 available.
Key Parameters
Certification
CE · ETL · RoHS
Bases
G4 / G9 / GU10 / MR16 / MR11
Chip
COB & SMD
CRI
Ra 80 / 90
Beam
24° – 60°
Wattage
1.1W – 5W
CCT
3000K – 4000K
Why Buyers Choose This Series
⭐ COB design — no hotspot through the diffuser lens, the failure mode that ends repeat orders
SMD-cluster spotlight bulbs often show individual LED dots through a frosted diffuser — visible to the eye and obvious in display-case jewellery and watch lighting. HongYu's COB models use a single-chip design that produces a smooth, even beam with no visible emitter pattern. For retail display and hospitality applications where the light source is visible to the customer, this is not a cosmetic preference — it is a functional requirement that buyers state explicitly in their RFQs.
Where This Product Fits
Display Cases
Jewellery and watch display lighting
Under-Cabinet
Kitchen and shelving task lighting
Track Lighting
Gallery and retail spotlighting
Hospitality
Recessed accent lighting
Full Specifications
| Item No. | Size | Voltage | Watts | CCT | Ra | Lumen | Dimmable | Finish | Cert. |
|---|---|---|---|---|---|---|---|---|---|

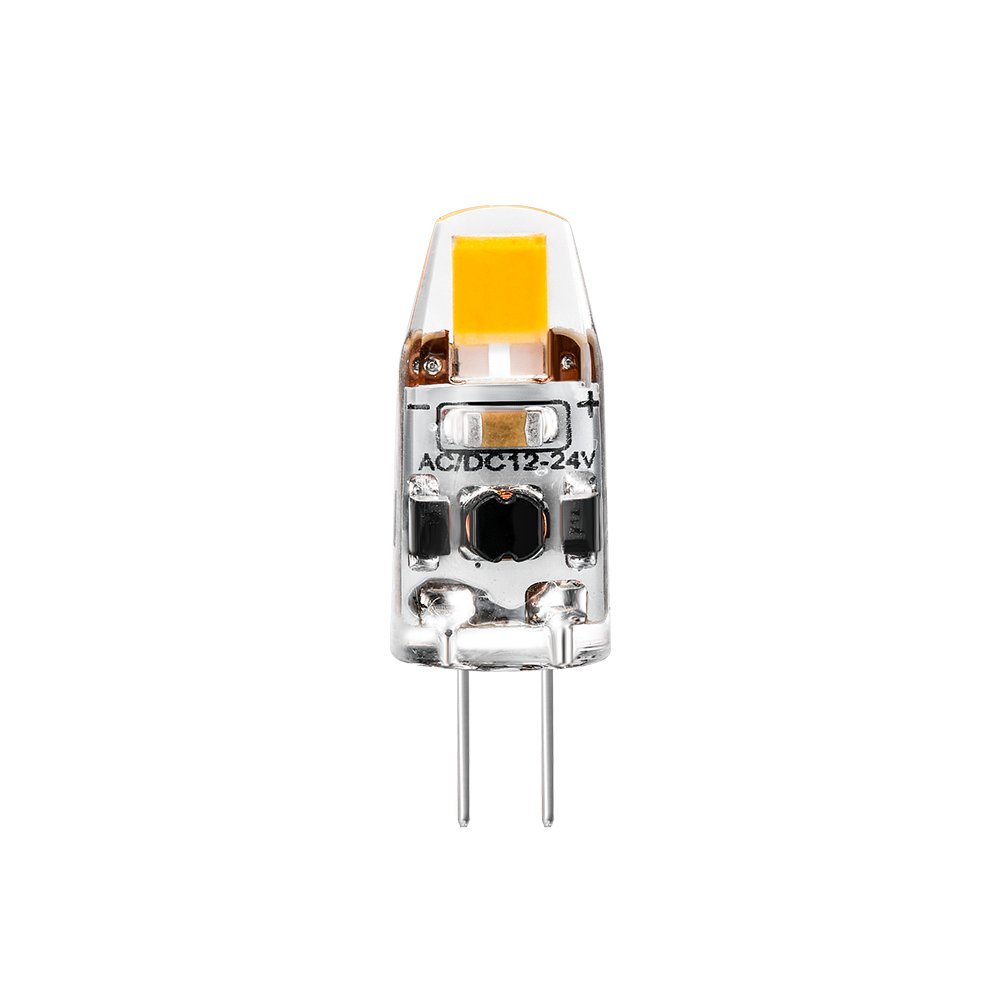

| G4-1.1W-COB-S | 10x30mm | 230V | 1.1W | 3000K | 80/90 | 100Lm | Yes | Clear | — |

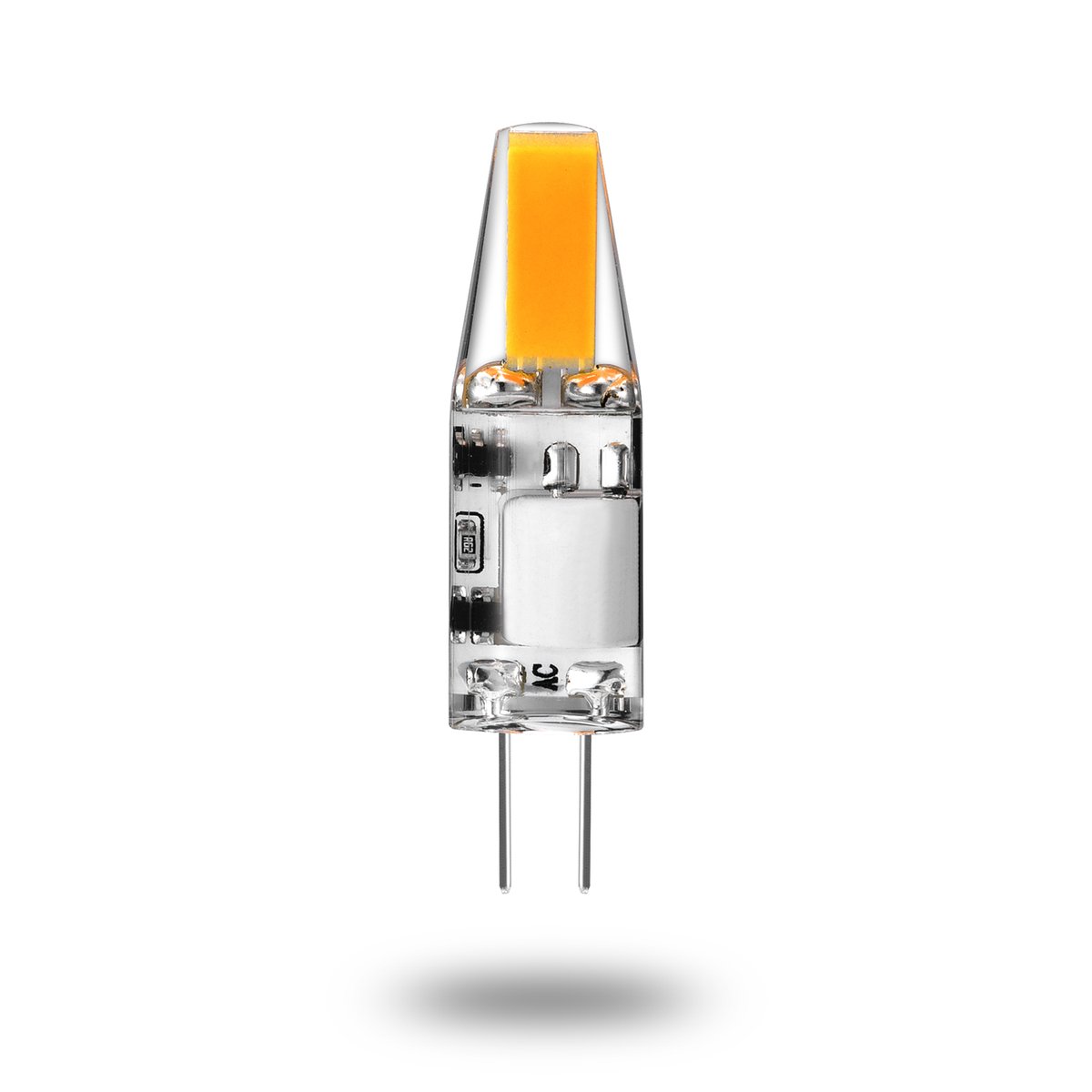

| G4-1.5W-COB-S | 10.5x41.5mm | 230V | 1.5W | 3000K | 80/90 | 180Lm | Yes | Clear | — |
| G4-2.0W-COB-S | 13x47.5mm | 230V | 2.0W | 3000K | 80/90 | 250Lm | Yes | Clear | — |
| G4-1.8W-SMD-C | 10.5x37mm | 230V | 1.8W | 3000K | 80/90 | 190Lm | Yes | Clear | — |
| G4-2.0W-SMD-C | 13.5x41.2mm | 230V | 2.0W | 3000K | 80/90 | 230Lm | Yes | Clear | — |
| G4-2.0W-SMD-C | 13.5x41mm | 230V | 2.0W | 3000K | 80/90 | 230Lm | Yes | Clear | — |
| G9-3.0W-SMD-C | 20x70mm | 230V | 3.0W | 2700K | 80/90 | 250Lm | Yes | Clear | — |

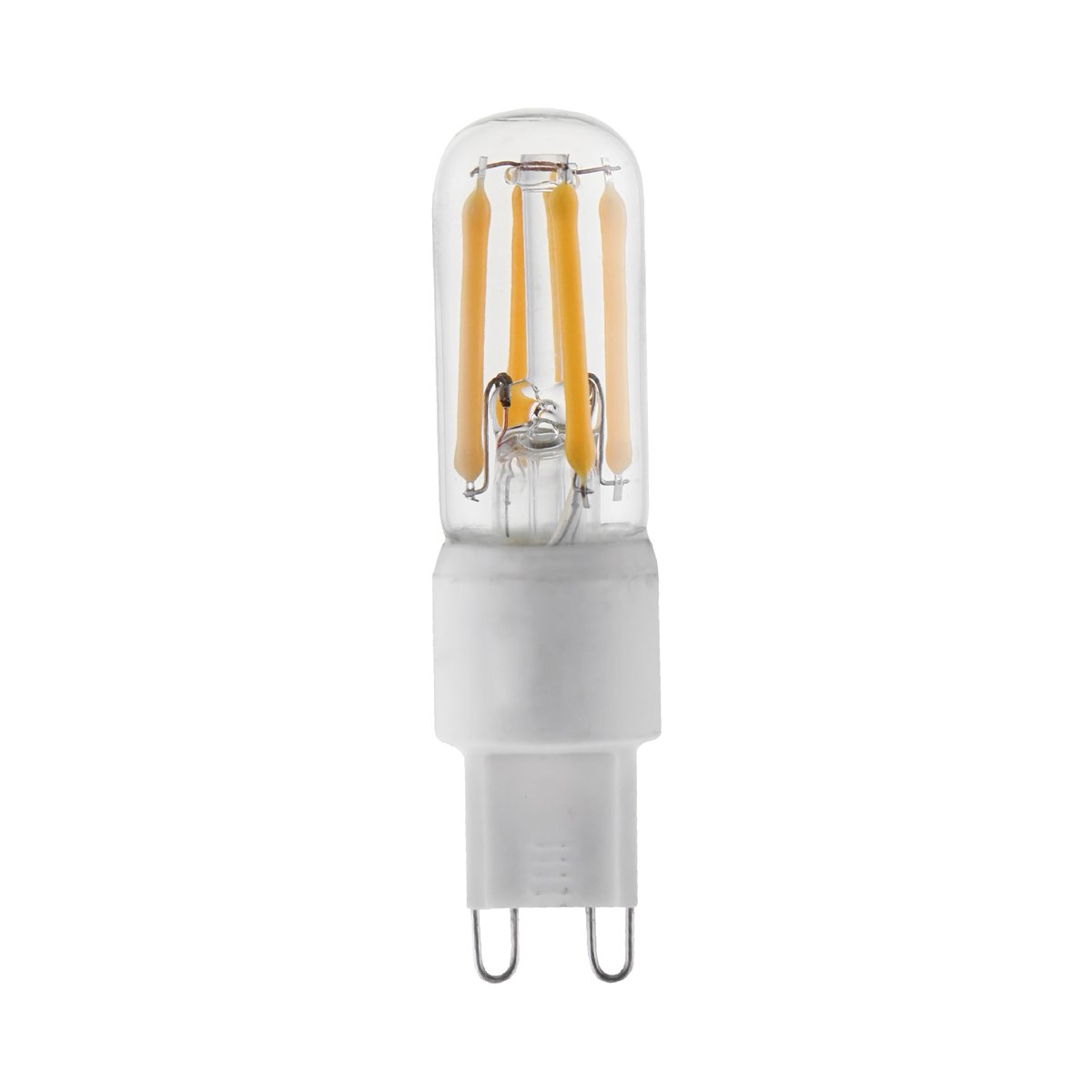

| G9-3.0W-FILA-G | 17x49mm | 230V | 3.0W | 3000K | 80/90 | 300Lm | Yes | Clear | — |

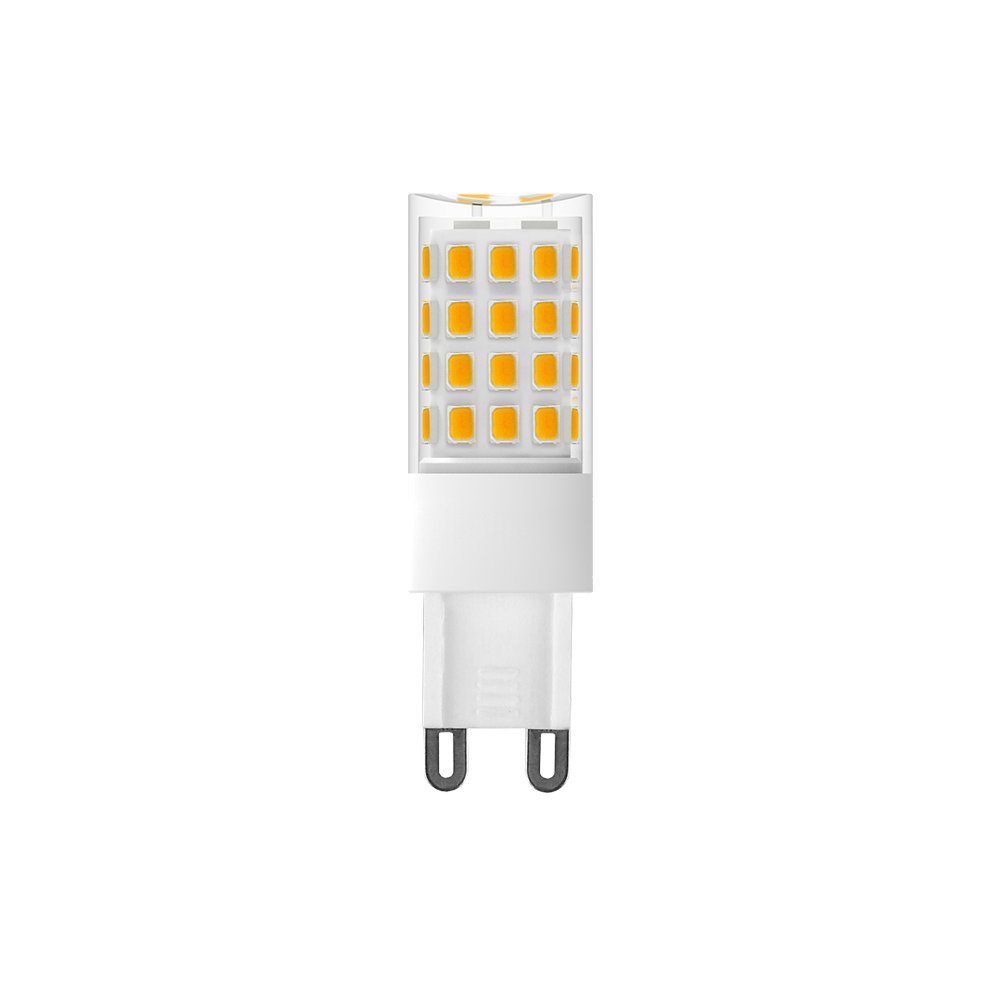

| G9-4.5W-SMD-C | 18x57mm | 230V | 4.5W | 3000K | 80/90/95 | 450Lm | Yes | Clear | — |
| MR11-2.0W-AP | 35x35mm | 230V | 2.0W | 3000K | 80/90 | 160Lm | Yes | Clear | — |

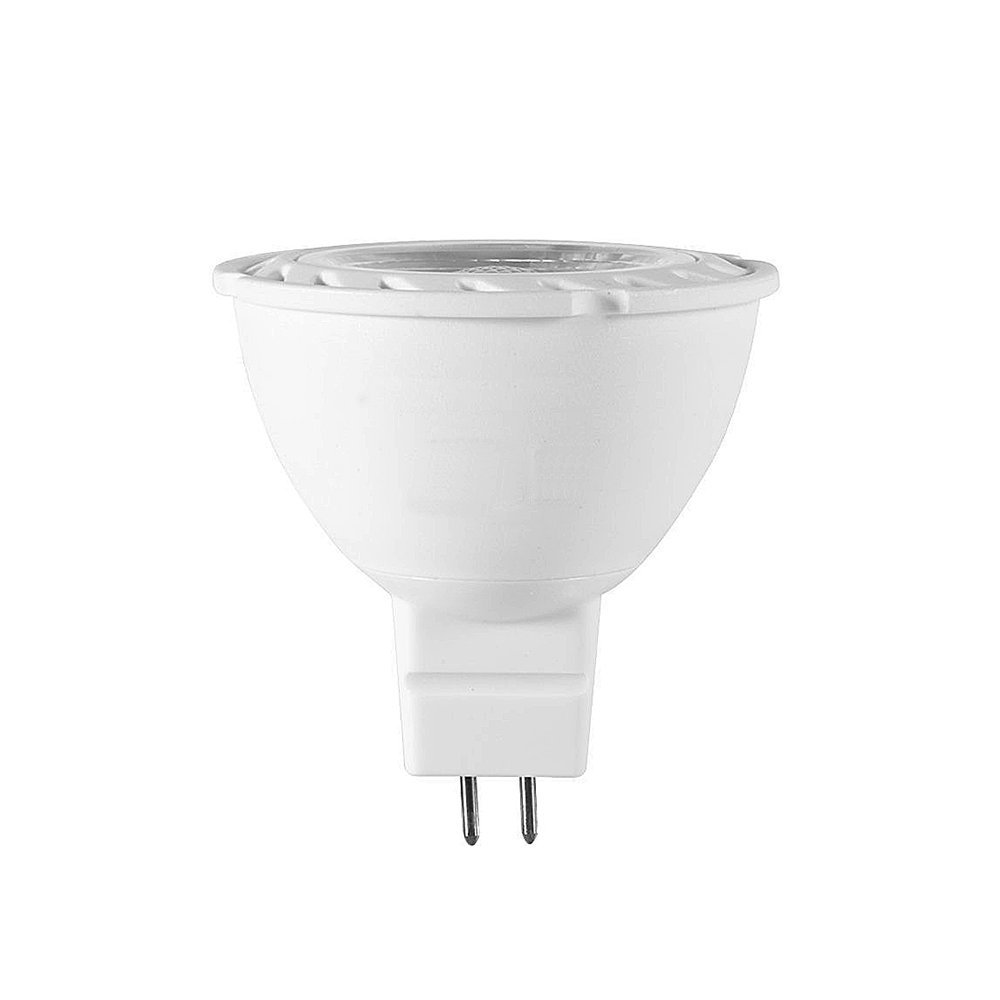

| MR16-5.0W-AP | 50x54mm | 230V | 5.0W | 3000K | 80/90 | 450Lm | Yes | Clear | — |

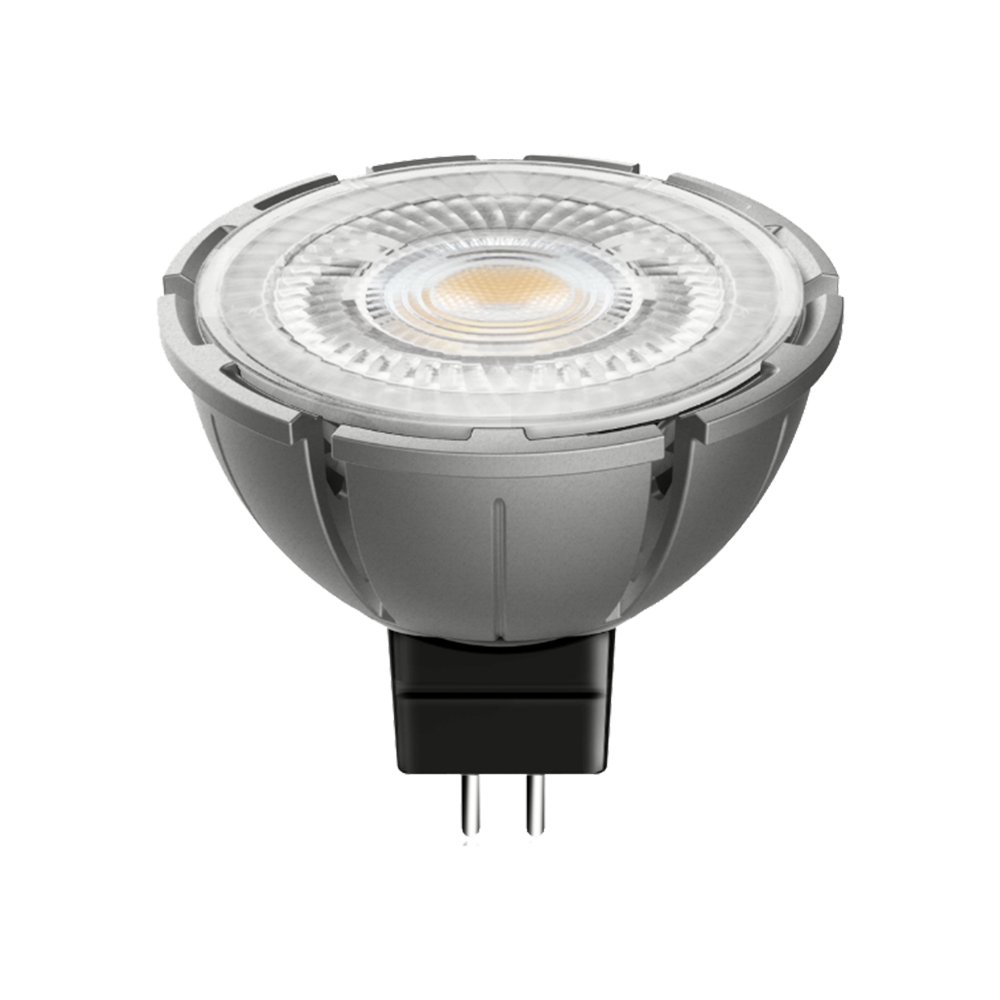

| MR16-7.0W-AL | 50x54mm | 230V | 7.0W | 3000K | 80/90 | 500Lm | Yes | Clear | — |
| GU10-2.5W-AP | 35x40mm | 230V | 2.5W | 3000K | 80/90 | 250Lm | Yes | Clear | — |
| GU10-5.0W-AP | 50x55mm | 230V | 5.0W | 3000K | 80/90 | 450Lm | Yes | Clear | — |
| GU10-7.0W-AL | 50x55mm | 230V | 7.0W | 3000K | 80/90/95 | 500Lm | Yes | Clear | — |
Sourcing Notes: CE: LVD and EMC directives. ETL: Active listing. Beam accuracy: ±5°. COB models: Single-chip, no emitter hotspot.
OEM & Custom Options
Beam Angles
24° (narrow spot), 36° (medium flood), 60° (wide flood). Custom optics from 5,000 pcs.
High CRI
Ra 90 available on GU10 and MR16 for display and gallery use.
Voltage
G4: 12V AC/DC. G9: 230V mains. GU10/MR16: 230V or 12V AC.
FAQ
G4 vs G9 — what is the difference?
G4 has two pin contacts 4mm apart, runs on 12V. G9 has looped pins, runs on 230V — no transformer needed.
Do G4 LEDs need a special transformer?
G4 LEDs require an AC 12V transformer (not DC). DC transformers cause flickering or failure.
What beam angles are available?
24°, 36°, and 60°. High CRI (Ra 90/95) available for display use.
MOQ?
500 pcs per item. Mixed orders from 300 pcs per model.
