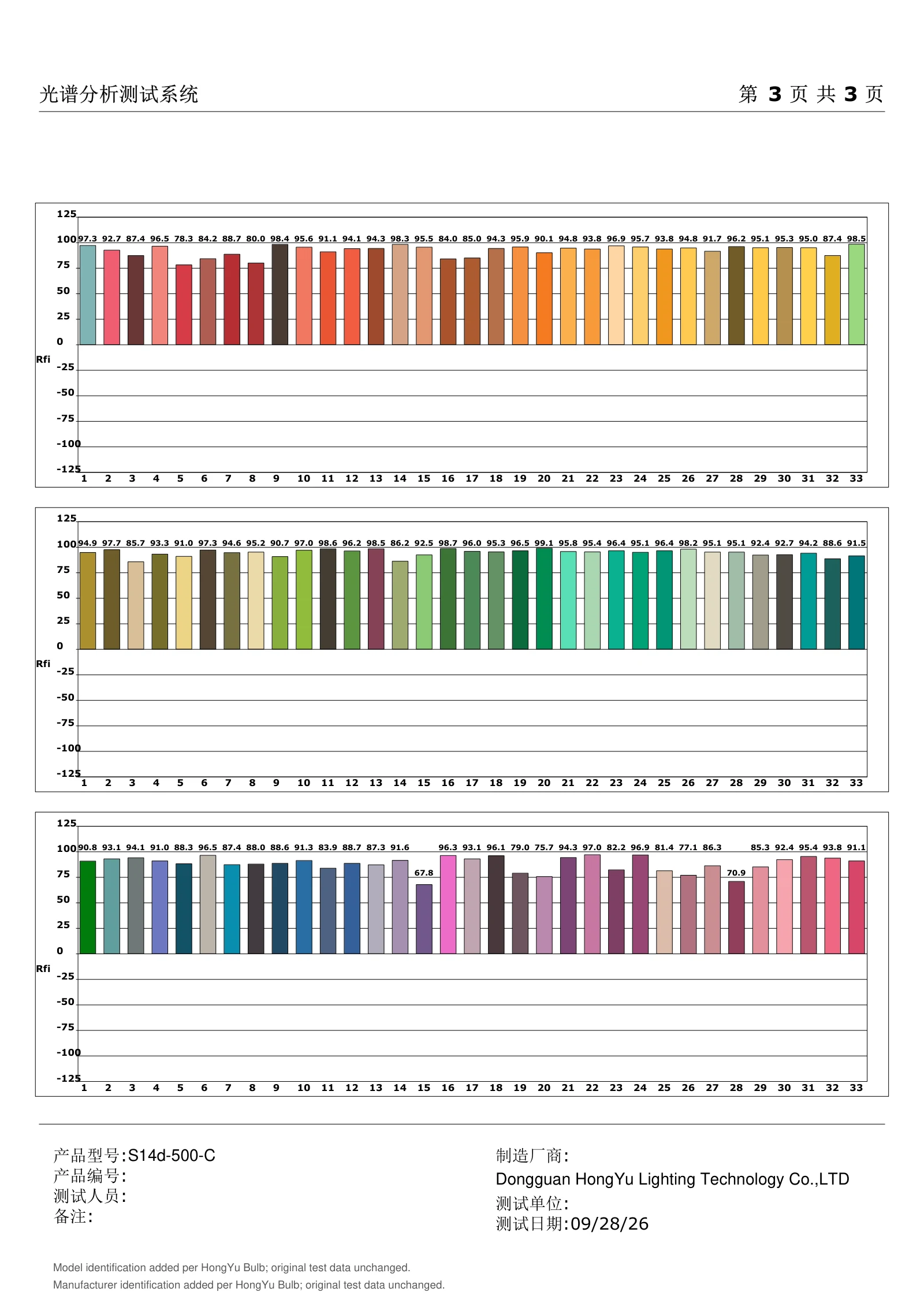

S14d-500-C
Pages 2 & 3
S14d Linear LED Bulbs
Linear filament bulbs for mirror lights, vanity fixtures and slim wall luminaires. Clear, Strip Clear, Gold and Porcelain finishes.
HongYu Bulb supplies S14d linear LED filament bulbs for lighting brands, importers and fixture manufacturers. The current range includes 500 mm and 700 mm models at 7W, plus 1000 mm Pro models at 9W. The listed EU specifications are 230V, 2700K, Ra 90 and dimmable.
Product Gallery

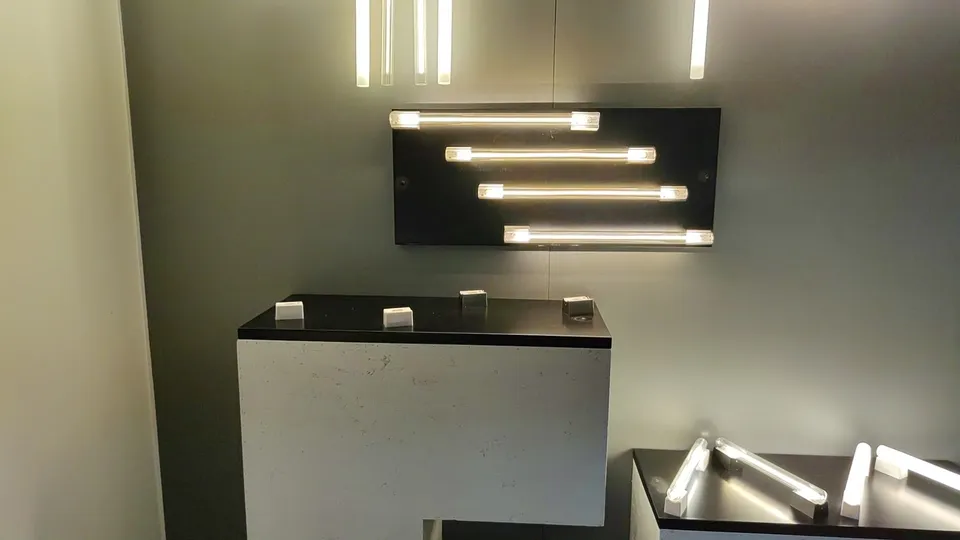

Lighting display with visible filaments.

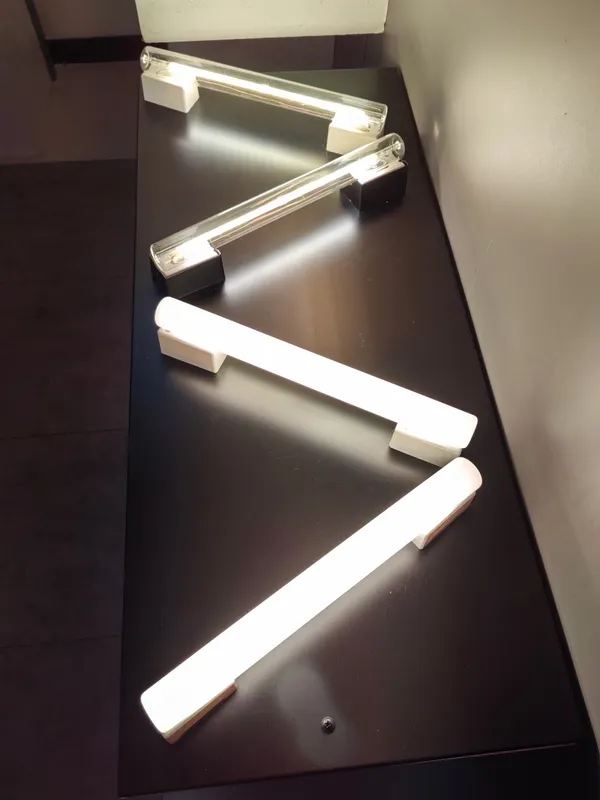

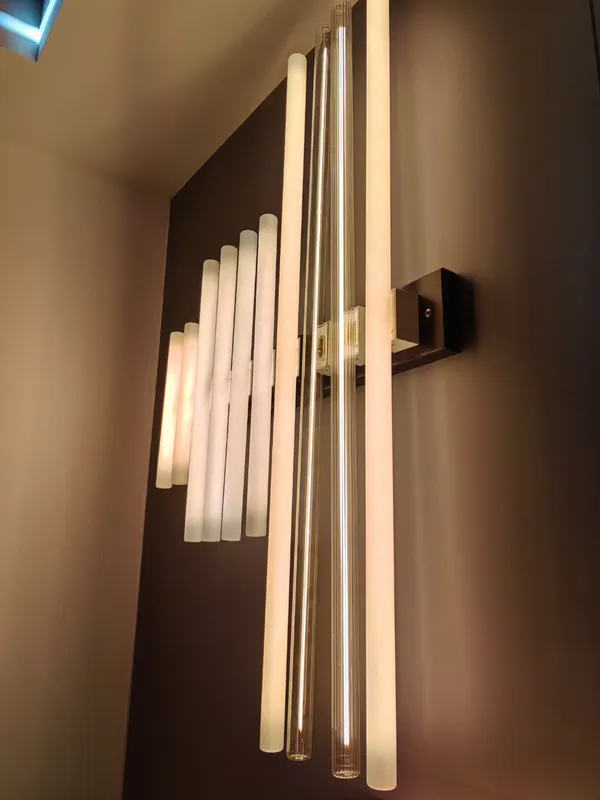

Lighting display with a diffuse white finish.

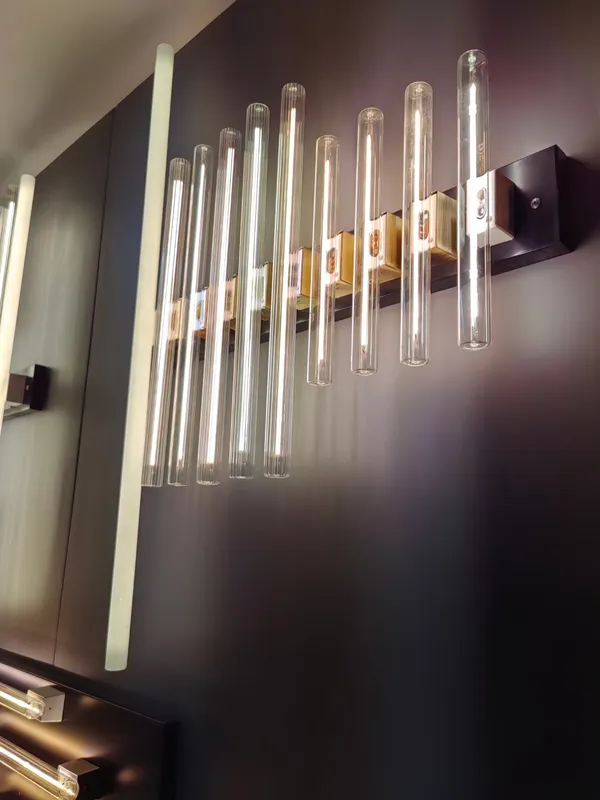

Different lengths shown in fixture arrangements.
Display photographs show the series in fixtures. Model numbers and nominal specifications are listed below.
Models & Specifications
Voltage
230V
Power
7W / 9W
CCT
2700K
CRI (Ra)
90
Dimmable
Yes
| Model | Diameter × Length | Power | Nominal Lumens | Finish |
|---|---|---|---|---|
| S14d-500-C | 30 × 500 mm | 7 W | 840 lm | Clear |
| S14d-500-SC | 30 × 500 mm | 7 W | 840 lm | Strip Clear |
| S14d-500-G | 30 × 500 mm | 7 W | 700 lm | Gold |
| S14d-500-W | 30 × 500 mm | 7 W | 780 lm | Porcelain |
| S14d-700-C | 30 × 700 mm | 7 W | 890 lm | Clear |
| S14d-700-SC | 30 × 700 mm | 7 W | 890 lm | Strip Clear |
| S14d-700-G | 30 × 700 mm | 7 W | 740 lm | Gold |
| S14d-700-W | 30 × 700 mm | 7 W | 780 lm | Porcelain |
| S14d-1000-C-Pro | 30 × 1000 mm | 9 W | 1000 lm | Clear |
| S14d-1000-W-Pro | 30 × 1000 mm | 9 W | 900 lm | Porcelain |
All listed models: 230V, 2700K, Ra 90, dimmable. Values are nominal product specifications, not individual sample measurements. Other voltage and CCT configurations require confirmation for the selected model.

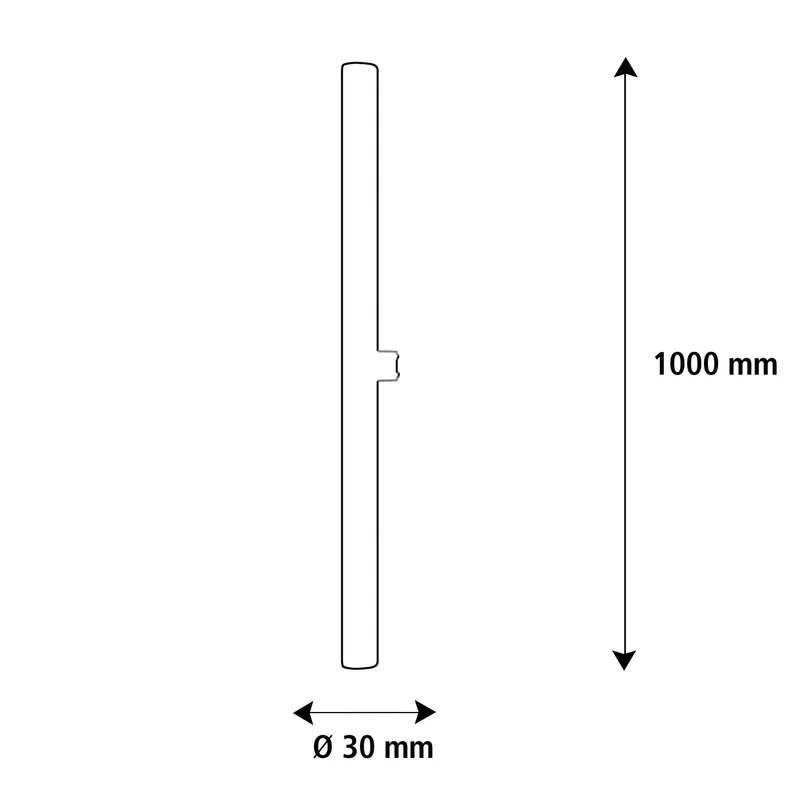

Base & Dimensions
S14d: one central connector on the tube. S14s: two separate connectors on the tube. Specify the base when requesting samples and match it to the fixture lampholder.
The models in the table use a 30 mm tube diameter. Check overall length, connector position and fixture clearance before ordering. Request the model-specific drawing when developing or replacing a luminaire.
Mirror & Linear Lighting Applications
Mirror and vanity lighting
For bathroom mirror luminaires, dressing-room mirrors and hotel vanity fixtures designed for the selected linear bulb and base.
Wall and picture lighting
For slim wall luminaires and picture-light designs where the tube length, light output and glass finish are part of the fixture specification.
Bathroom suitability depends on the complete luminaire and installation location. Confirm the fixture protection rating, lampholder and thermal conditions; the bulb alone does not establish the fixture's suitability.
Project Options
Voltage and color temperature
230V is the listed EU configuration. Ask about 120V / 60Hz versions for US projects. CCT options include 2200K, 2700K, 3000K, 4000K and 6500K, subject to the selected configuration.
Color quality and dimming
Specify the required SDCM bin (3, 5 or 6) and R9 target (>50 or >80). Confirm the driver configuration, dimmer pairing and minimum stable light level with samples.
Fixture compatibility
Enclosed-fixture use is listed for the series. Confirm temperature performance in the actual luminaire, especially for enclosed mirror-light designs.
Warranty and project documentation
Two-year warranty. Confirm the applicable LVD, EMC and RoHS documentation for the ordered configuration and target market when requesting a quotation.

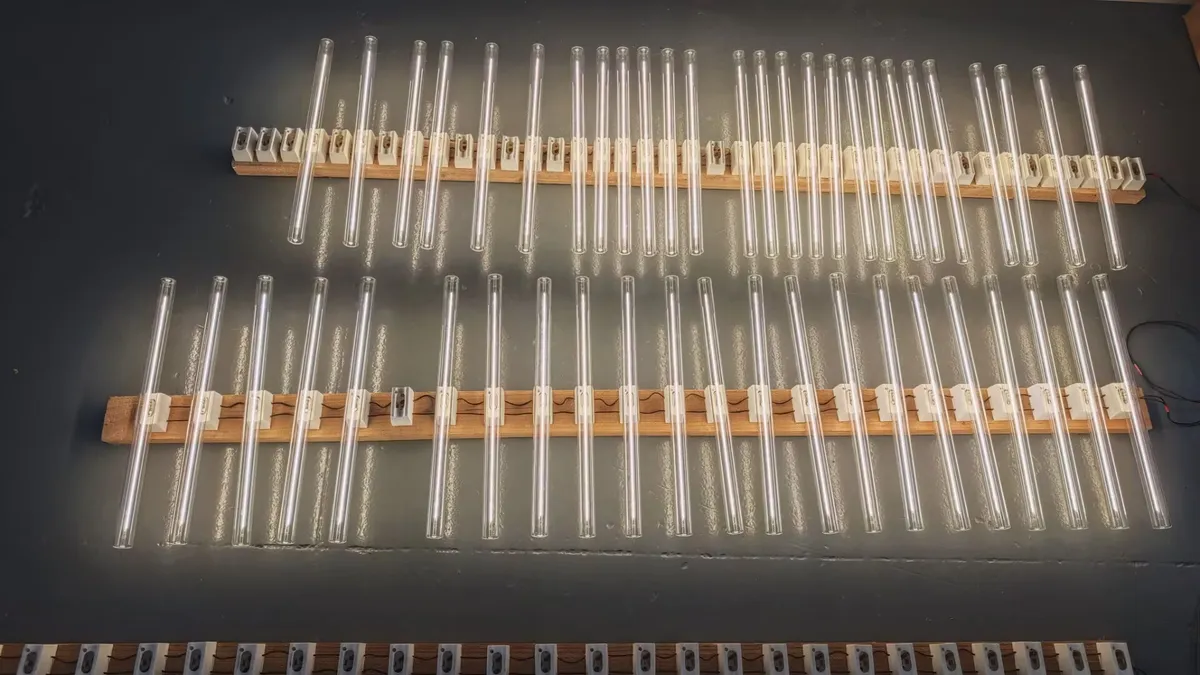

Production & Sample Review
For sample approval, specify the model, voltage, CCT, dimmer, lamp quantity and fixture conditions. Include any power-factor, color-consistency or flicker requirements so the configuration and test conditions can be agreed before production.

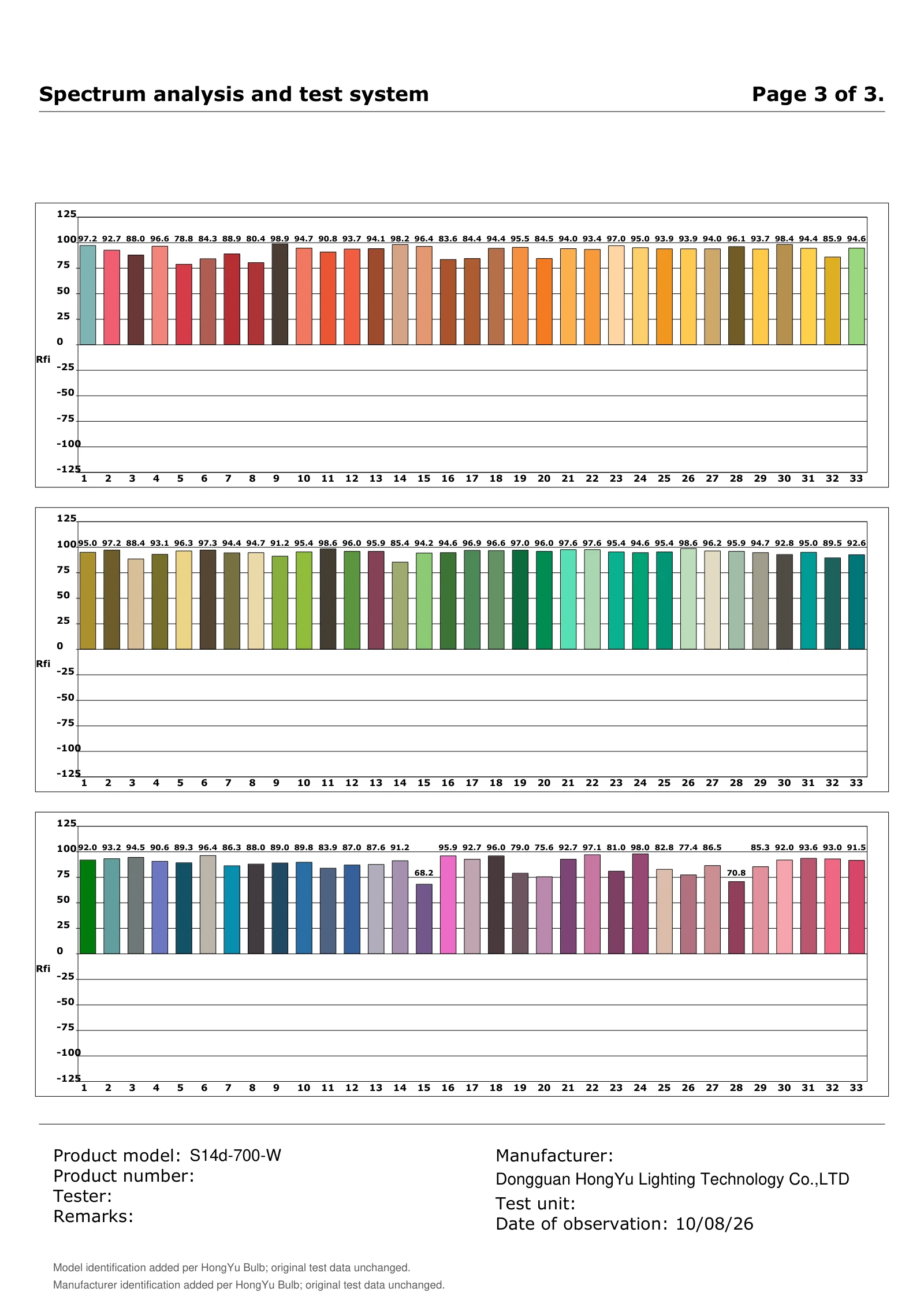

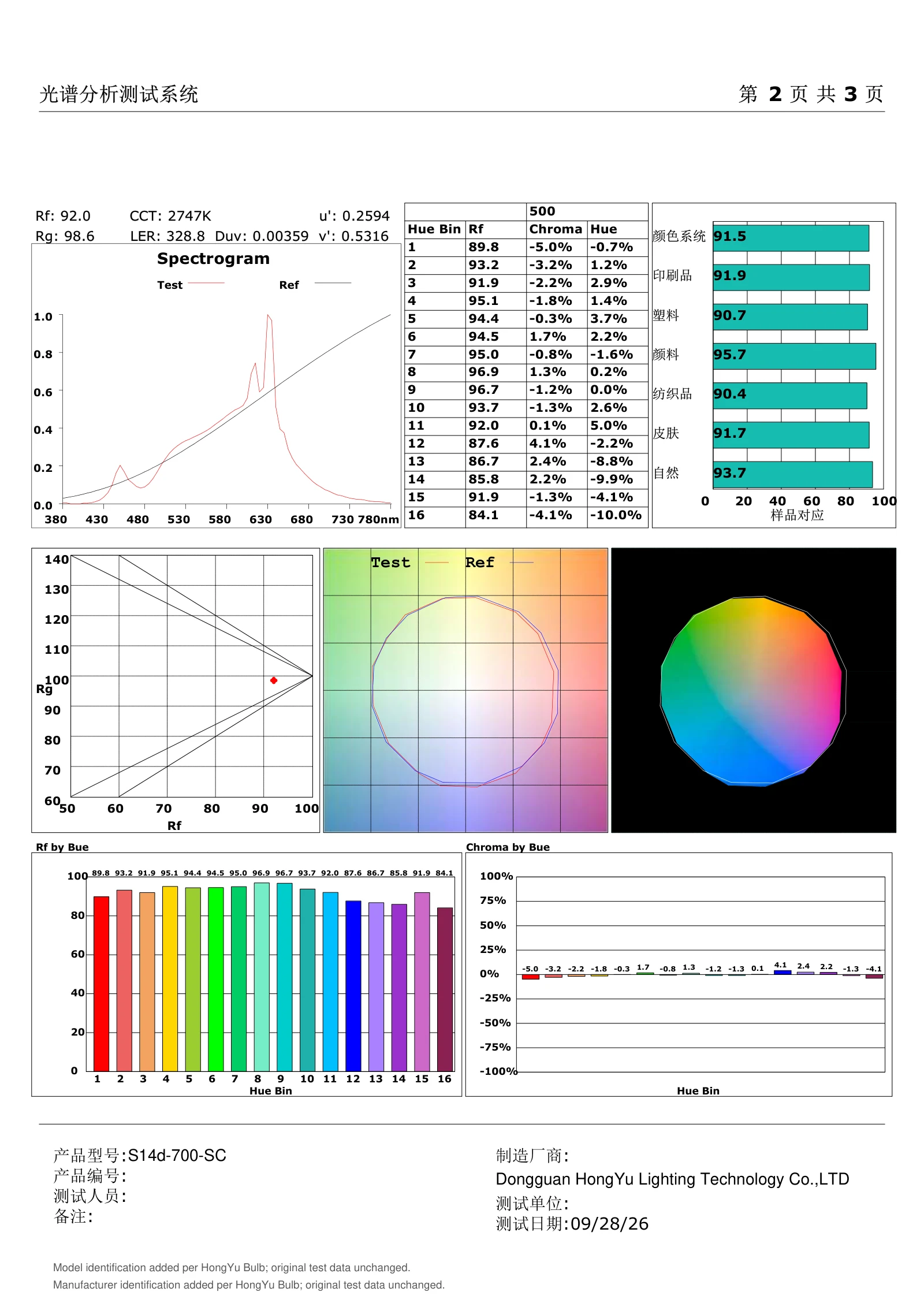

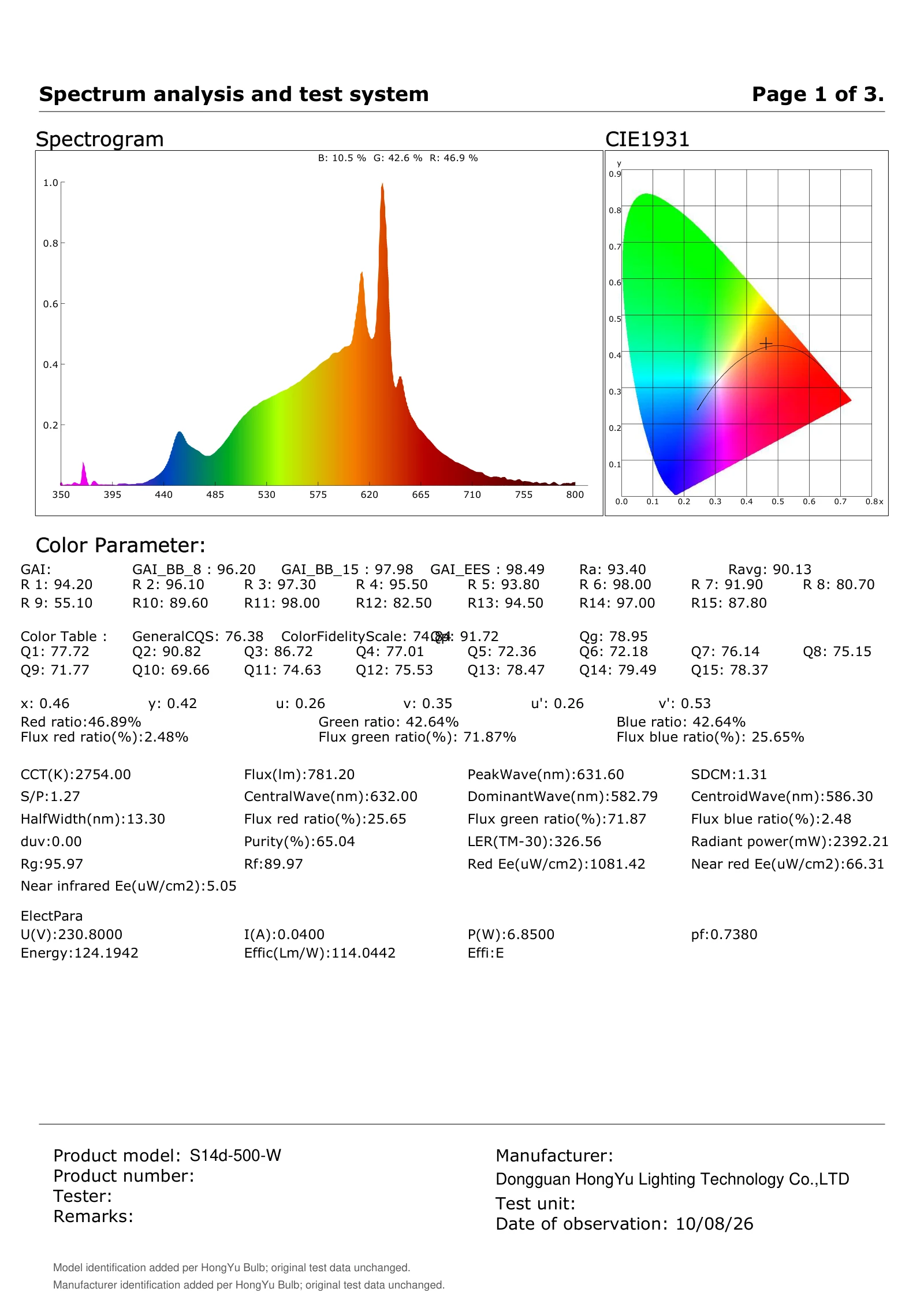

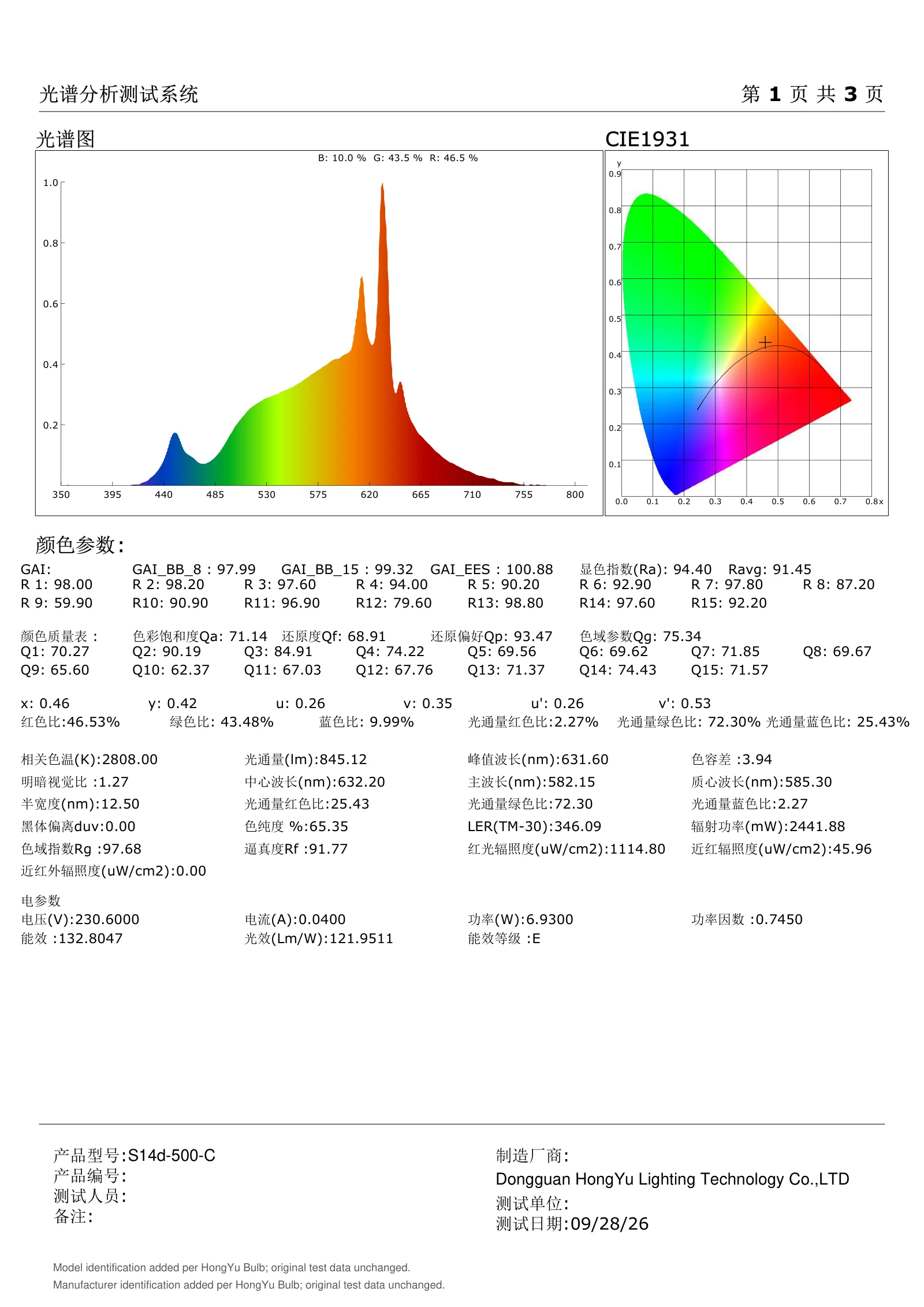

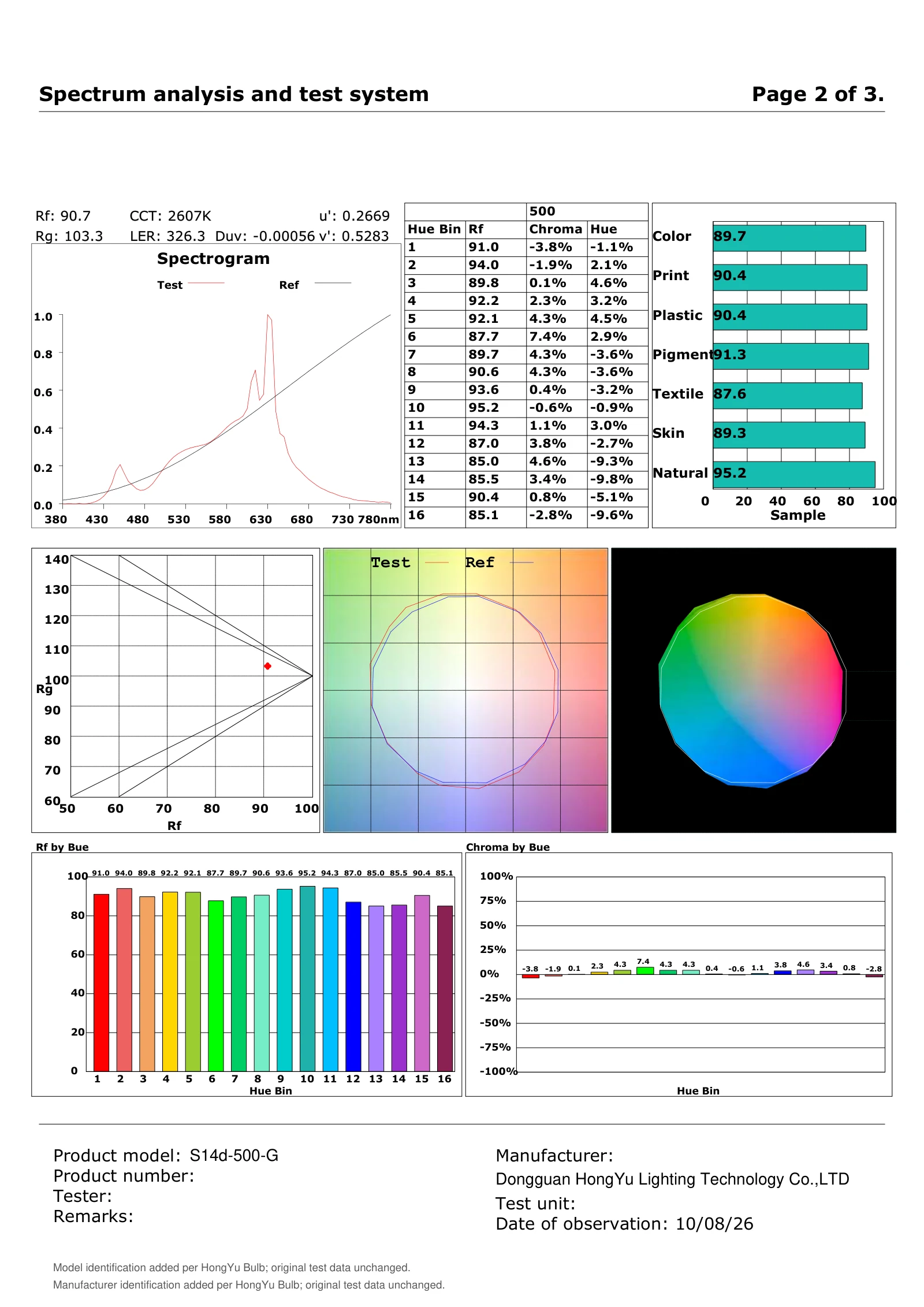

Photometric Test Reports
These reports record measured sample results, which may differ from the nominal specifications in the table. They are photometric reports, not product compliance certificates.

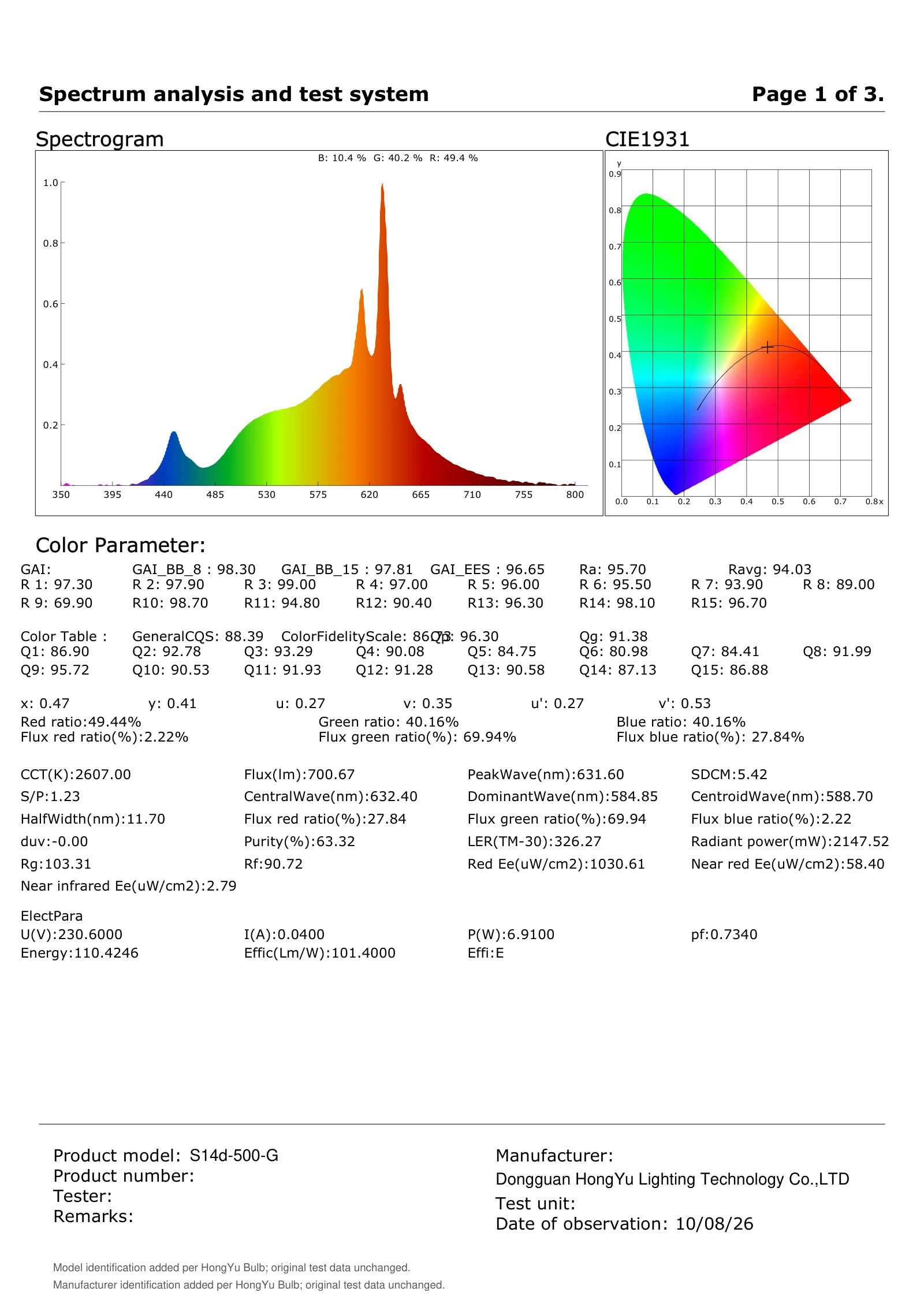

S14d-500-G
Pages 2 & 3
S14d-500-SC
Pages 2 & 3

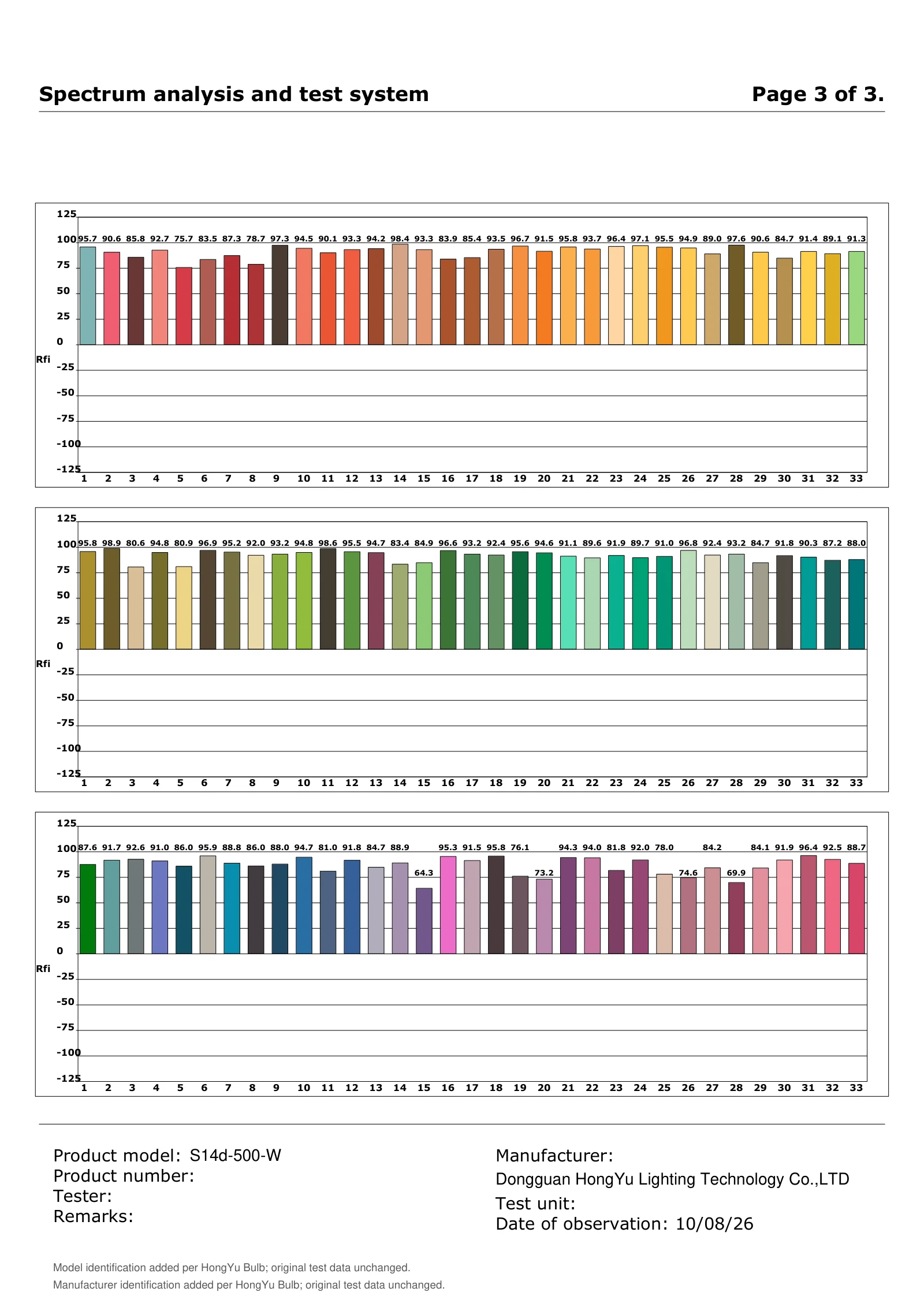

S14d-500-W
Pages 2 & 3
S14d-700-C
Pages 2 & 3

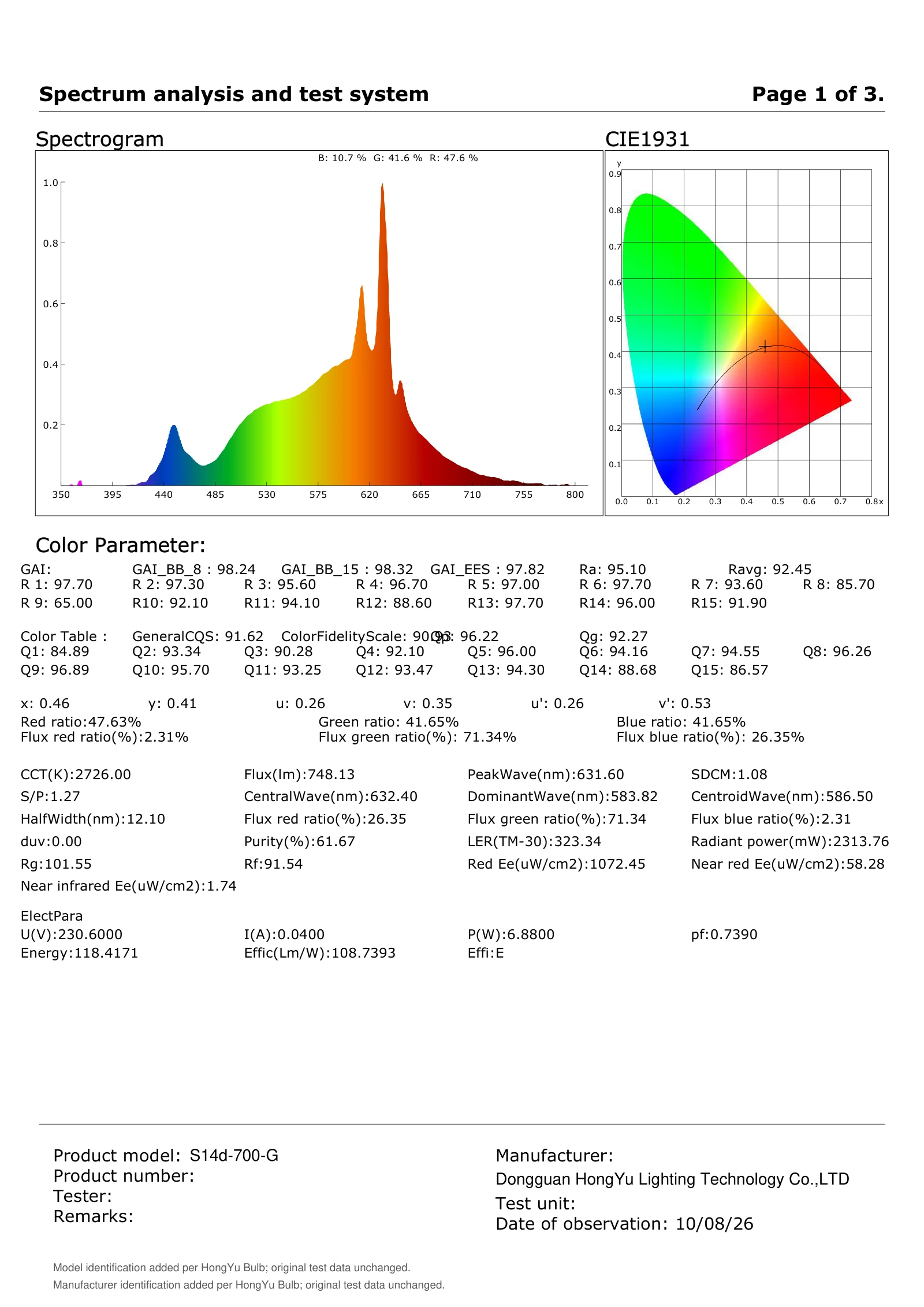

S14d-700-G
Pages 2 & 3
S14d-700-SC
Pages 2 & 3
S14d-700-W
Pages 2 & 3
Model and manufacturer identification were added to the supplied reports at HongYu Bulb's request. The original test measurements are unchanged. Confirm the required configuration and sample acceptance criteria with your inquiry.
FAQ
Which lengths and finishes are listed?
500 mm and 700 mm models are listed in Clear, Strip Clear, Gold and Porcelain. The 1000 mm Pro models are listed in Clear and Porcelain.
Are S14d and S14s interchangeable?
Do not assume they are interchangeable. S14d has one central connector, while S14s uses two separate connectors. Match the bulb to the fixture's base type, length and connector position.
Are these bulbs dimmable?
Yes, the listed models are dimmable. The usable dimming range depends on the bulb configuration, dimmer and connected load. Confirm the combination through sample testing.
What should I include in an inquiry?
Send the model numbers, quantities, target market, voltage, CCT, base and fixture details. HongYu Bulb will confirm sample availability, MOQ and production lead time for the requested configuration.
Request S14d Samples or a Quote
Send your model list, quantities and fixture requirements.
